ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
6 |
Vin (max) (V) |
5.5 |
Vin (min) (V) |
2.4 |
Vout (max) (V) |
5.5 |
Vout (min) (V) |
0.6 |
Features |
Adjustable soft start, Enable, Forced PWM, Light Load Efficiency, Output discharge, Over Current Protection, Power good, Pre-bias startup, Soft Start Adjustable, Soft-start adjustable, Synchronous Rectification, Thermal shutdown |
Control mode |
DCS-Control |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.000005 |
Duty cycle (max) (%) |
100 |

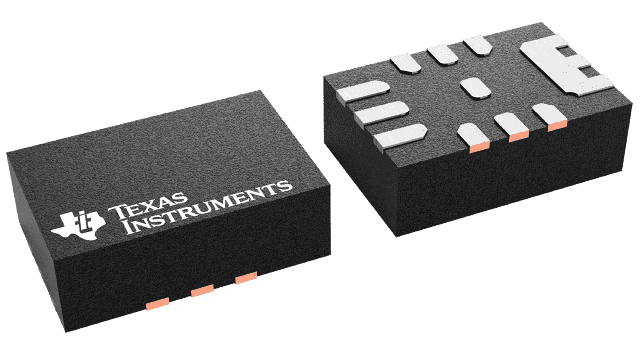

VQFN-HR (VBM)-13-6 mm² 3 x 2
The TPS6286A06D device is a high-frequency, synchronous, step-down converter which provides an efficient, flexible, and high power-density design. At medium to heavy loads, the converter operates in pulse width modulation (PWM) mode and automatically enters power save mode operation at light load to maintain high efficiency over the entire load current range. The device can also be forced in PWM mode operation to minimize output voltage ripple. Together with the DCS-Control architecture, excellent load transient performance and tight output voltage accuracy is achieved. The device features a Power-Good signal with internal pull-up resistor to VIN (for external pull up resistor option, use TPS6286A06) and an adjustable soft-start feature. The device is able to operate in 100% mode. For fault protection, the device incorporates a HICCUP short-circuit protection as well as a thermal shutdown.
