0
ACTIVE
Rating |
Automotive |
Topology |
Boost Controller |
Vin (max) (V) |
45 |
Vin (min) (V) |
2.5 |
Vout (max) (V) |
60 |
Vout (min) (V) |
6 |
Control mode |
current mode control |
Features |
Adjustable current limit, Adjustable soft start, Adjustable switching frequency, Analog current monitor, Automatic Light Load Management, Automotive load dump, Bypass Mode, Chip-enable control pin, Cycle-by-cycle overcurrent protection, External Sync, Fixed PWM Mode, Multiphase, Overcurrent protection with adjustable delay, Power good, Programmable dead time, Spread Spectrum, Tracking |
EMI features |
Frequency Dithering, Spread Spectrum |
Duty cycle (max) (%) |
99.2 |
Iq (typ) (A) |
0.00025 |
TI functional safety category |
Functional Safety-Capable |
Operating temperature range (°C) |
-40 to 150 |

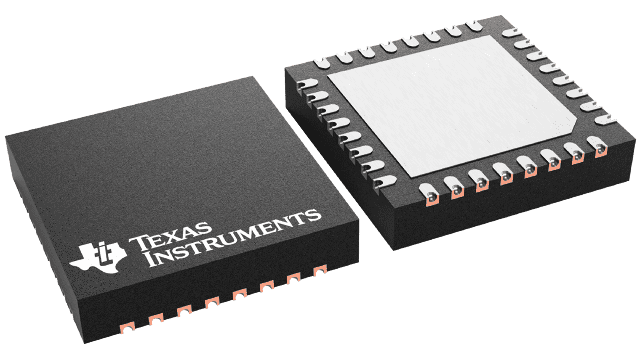

VQFN (RHB)-32-25 mm² 5 x 5
The LM5125-Q1 is a dual-phase, synchronous boost controller. The device provides a regulated output voltage for lower or equal input voltage also supporting VI to VOUT bypass mode to save power.
Dynamically program VOUT using the analog or digital ATRK/DTRK function. VI is supported down to 2.5V after start-up as the internal VCC supply is automatically switched from VBIAS to VOUT for VBIAS < 4.5V. The fixed switching frequency is set between 100kHz and 2.2MHz through a resistor on the RT pin or the SYNCIN clock. The switching modes FPWM or diode emulation can be changed during operation.
The implemented protections peak current limit, average input current limit, average inductor current monitor, over and undervoltage protection, and the thermal shutdown protect the device and the application.
