TLV717P
  • TLV717P
  • TLV717P
  • TLV717P

TLV717P

ACTIVE

150-mA, low-IQ, low-dropout voltage regulator with active output discharge & enable

Texas Instruments TLV717P Product Info

1 April 2026 4

Parameters

Rating

Catalog

Vin (max) (V)

5.5

Vin (min) (V)

1.7

Iout (max) (A)

0.15

Output options

Fixed Output

Vout (max) (V)

3.3

Vout (min) (V)

1.2

Fixed output options (V)

1.2, 1.3, 1.5, 1.8, 1.85, 2.1, 2.5, 2.7, 2.8, 2.85, 2.9, 3, 3.3, 3.6

Noise (µVrms)

55

PSRR at 100 KHz (dB)

43

Iq (typ) (mA)

0.03

Features

Enable, Foldback Overcurrent protection

Thermal resistance θJA (°C/W)

393

Load capacitance (min) (µF)

0.1

Regulated outputs (#)

1

Accuracy (%)

1.5

Dropout voltage (Vdo) (typ) (mV)

215

Operating temperature range (°C)

-40 to 85

Package

X2SON (DQN)-4-1 mm² 1 x 1

Features

  • Very Low Dropout: 215 mV at 150 mA
  • Accuracy: 0.5% (typical)
  • Low IQ: 35 µA
  • Available in Fixed-Output Voltages:
    1.2 V to 5 V
  • High PSRR:
    • 70 dB at 1 kHz
    • 50 dB at 1 MHz
  • Stable With Effective Output Capacitance:
    0.1 µF
  • Foldback Current Limit
  • Package: 1-mm × 1-mm DQN(1)(2)
  • Very Low Dropout: 215 mV at 150 mA
  • Accuracy: 0.5% (typical)
  • Low IQ: 35 µA
  • Available in Fixed-Output Voltages:
    1.2 V to 5 V
  • High PSRR:
    • 70 dB at 1 kHz
    • 50 dB at 1 MHz
  • Stable With Effective Output Capacitance:
    0.1 µF
  • Foldback Current Limit
  • Package: 1-mm × 1-mm DQN(1)(2)

Description

The TLV717P series of low-dropout (LDO) linear regulators are low quiescent current LDOs with excellent line and load transient performance and are designed for power-sensitive applications. These devices provide a typical accuracy of 0.5%.

The TLV717P series offer current foldback that throttles down the output current with a decrease in load resistance. The typical value at which current foldback initiates is 350 mA; the typical value of the output short current limit value is 40 mA.

Furthermore, these devices are stable with an effective output capacitance of only 0.1 µF. This feature enables the use of cost-effective capacitors that have higher bias voltages and temperature derating. The devices regulate to specified accuracy with no output load.

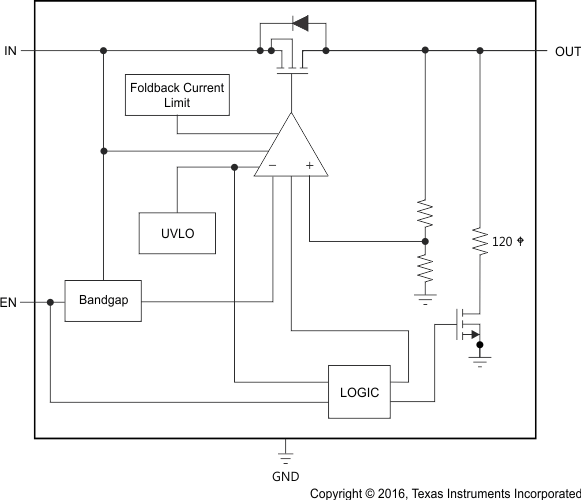

The TLV717P series is available in a 1-mm × 1-mm DQN package that makes them ideal for hand-held applications. The TLV717P provides an active pulldown circuit to quickly discharge output loads.
