SN74AXC2T245
  • SN74AXC2T245
  • SN74AXC2T245

SN74AXC2T245

ACTIVE

Dual-bit, 2-DIR pin dual-supply bus transceiver w/ configurable voltage translation, 3-state output

Texas Instruments SN74AXC2T245 Product Info

1 April 2026 5

Parameters

Bits (#)

2

Data rate (max) (Mbps)

380

Topology

Push-Pull

Direction control (typ)

Direction-controlled

Vin (min) (V)

0.65

Vin (max) (V)

3.6

Vout (min) (V)

0.65

Vout (max) (V)

3.6

Applications

JTAG, UART

Features

Output enable, Overvoltage tolerant inputs, Partial power down (Ioff), Vcc isolation

Prop delay (ns)

4

Technology family

AXC

Supply current (max) (mA)

0.023

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

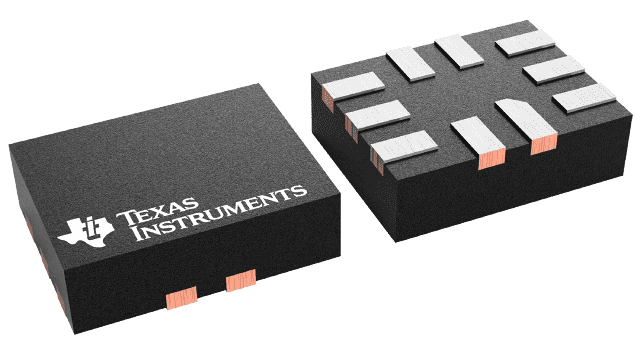

UQFN (RSW)-10-2.52 mm² 1.8 x 1.4

Features

  • Fully configurable dual-rail design allows each port to operate with a power supply range from 0.65V to 3.6V
  • Operating temperature from –40°C to +125°C
  • DIR control input for each channel
  • Glitch-free power supply sequencing
  • Up to 380-Mbps support when translating from 1.8V to 3.3V
  • VCC isolation feature
    • If either VCC input is below 100mV, all I/O outputs are disabled and become high-impedance
  • Ioff supports partial-power-down mode operation
  • Compatible with AVC-family level shifters
  • Latch-up performance exceeds 100 mA per JESD 78, class II
  • ESD protection exceeds JEDEC JS-001
    • 8000-V Human-body model
    • 1000-V Charged-device model
  • Fully configurable dual-rail design allows each port to operate with a power supply range from 0.65V to 3.6V
  • Operating temperature from –40°C to +125°C
  • DIR control input for each channel
  • Glitch-free power supply sequencing
  • Up to 380-Mbps support when translating from 1.8V to 3.3V
  • VCC isolation feature
    • If either VCC input is below 100mV, all I/O outputs are disabled and become high-impedance
  • Ioff supports partial-power-down mode operation
  • Compatible with AVC-family level shifters
  • Latch-up performance exceeds 100 mA per JESD 78, class II
  • ESD protection exceeds JEDEC JS-001
    • 8000-V Human-body model
    • 1000-V Charged-device model

Description

The SN74AXC2T245 is a two-bit noninverting bus transceiver that uses two individually configurable power-supply rails. The device is operational with both VCCA and VCCB supplies as low as 0.65V. The A port is designed to track VCCA, which accepts any supply voltage from 0.65V to 3.6V. The B port is designed to track VCCB, which also accepts any supply voltage from 0.65V to 3.6V. Additionally the SN74AXC2T245 is compatible with a single-supply system.

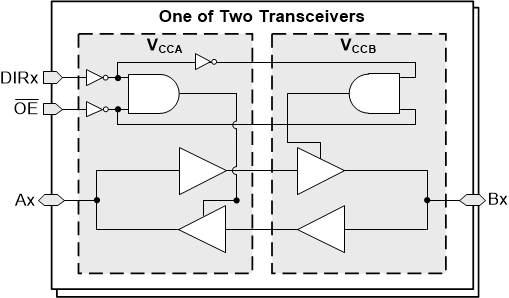

The SN74AXC2T245 device is designed for asynchronous communication between data buses. The device transmits data from the A bus to the B bus or from the B bus to the A bus, depending on the logic level of the direction-control inputs (DIRx). The SN74AXC2T245 device is designed so the control pin (DIR) is referenced to VCCA.

This device is fully specified for partial-power-down applications using the Ioff current. The Ioff protection circuitry is designed so that no excessive current is drawn from or to an input, output, or combined I/O that is biased to a specific voltage while the device is powered down.

The VCC isolation feature is designed so that if either VCCA or VCCB is less than 100mV, both I/O ports enter a high-impedance state by disabling their outputs.

Glitch-free power supply sequencing allows either supply rail to be powered on or off in any order while providing robust power sequencing performance.
