SN74LVC157A-Q1

SN74LVC157A-Q1

ACTIVE

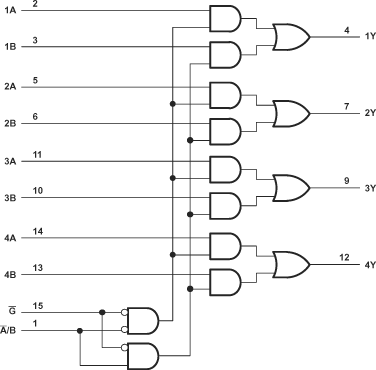

Automotive quadruple 2-line-to-1-line data selector/multiplexer

Texas Instruments SN74LVC157A-Q1 Product Info

1 April 2026 4

Parameters

Technology family	LVC
Function	Digital Multiplexer
Configuration	2:1
Number of channels	4
Operating temperature range (°C)	-40 to 125
Rating	Automotive

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

Qualified for automotive applications
ESD protection exceeds 2000V per MIL-STD-883, method 3015
Operates from 2V to 3.6V
Inputs accept voltages to 5.5V
Max tpd of 5.4ns at 3.3V
Typical VOLP (output ground bounce) < 0.8V at VCC = 3.3V, TA = 25°C
Typical VOHV (output VOH undershoot) > 2V at VCC = 3.3V, TA = 25°C

Qualified for automotive applications
ESD protection exceeds 2000V per MIL-STD-883, method 3015
Operates from 2V to 3.6V
Inputs accept voltages to 5.5V
Max tpd of 5.4ns at 3.3V
Typical VOLP (output ground bounce) < 0.8V at VCC = 3.3V, TA = 25°C
Typical VOHV (output VOH undershoot) > 2V at VCC = 3.3V, TA = 25°C

Description

The SN74LVC157A quadruple 2-line to 1-line data selector/multiplexer is designed for 2.7V to 3.6V VCC operation.
