Texas Instruments SN74CBT16212C Product Info

Parameters

Protocols	Analog
Configuration	Crosspoint/exchange
Number of channels	24
Bandwidth (MHz)	200
Supply voltage (max) (V)	5.5
Ron (typ) (mΩ)	3000
Input/output voltage (min) (V)	0
Input/output voltage (max) (V)	5.5
Operating temperature range (°C)	-40 to 85
ESD CDM (kV)	1
Input/output continuous current (max) (mA)	128
COFF (typ) (pF)	8
CON (typ) (pF)	19
OFF-state leakage current (max) (µA)	10
Ron (max) (mΩ)	12000
VIH (min) (V)	2
VIL (max) (V)	0.8
Rating	Catalog

Package

SSOP (DL)-56-190.647 mm² 18.42 x 10.35

Features

Member of the Texas Instruments Widebus™ Family
Undershoot Protection for Off-Isolation on A and B Ports Up To –2 V
Bidirectional Data Flow, With Near-Zero Propagation Delay
Low ON-State Resistance (r_on) Characteristics (r_on = 3 Typical)
Low Input/Output Capacitance Minimizes Loading and Signal Distortion (C_io(OFF) = 8 pF Typical)
Data and Control Inputs Provide Undershoot Clamp Diodes
Low Power Consumption (I_CC = 5 µA Max)
V_CC Operating Range From 4 V to 5.5 V
Data I/Os Support 0 to 5-V Signaling Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)
Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Supports Both Digital and Analog Applications: PCI Interface, Memory Interleaving, Bus Isolation, Low-Distortion Signal Gating

Widebus is a trademark of Texas Instruments.

Member of the Texas Instruments Widebus™ Family
Undershoot Protection for Off-Isolation on A and B Ports Up To –2 V
Bidirectional Data Flow, With Near-Zero Propagation Delay
Low ON-State Resistance (r_on) Characteristics (r_on = 3 Typical)
Low Input/Output Capacitance Minimizes Loading and Signal Distortion (C_io(OFF) = 8 pF Typical)
Data and Control Inputs Provide Undershoot Clamp Diodes
Low Power Consumption (I_CC = 5 µA Max)
V_CC Operating Range From 4 V to 5.5 V
Data I/Os Support 0 to 5-V Signaling Levels (0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V)
Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs
I_off Supports Partial-Power-Down Mode Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22
- 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
Supports Both Digital and Analog Applications: PCI Interface, Memory Interleaving, Bus Isolation, Low-Distortion Signal Gating

Widebus is a trademark of Texas Instruments.

Description

The SN74CBT16212C is a high-speed TTL-compatible FET bus-exchange switch with low ON-state resistance (r_on), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT16212C provides protection for undershoot up to 2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.

The SN74CBT16212C operates as a 24-bit bus switch, or as a 12-bit bus-exchange that provides data exchanging between four signal ports. The select (S0, S1, S2) inputs control the data path of the bus-exchange switch. When the bus-exchange switch is ON, the A port is connected to the B port, allowing bidirectional data flow between ports. When the bus-exchange switch is disabled, a high-impedance state exists between the A and B ports.

This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, each select input should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

The SN74CBT16212C is a high-speed TTL-compatible FET bus-exchange switch with low ON-state resistance (r_on), allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT16212C provides protection for undershoot up to 2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.

The SN74CBT16212C operates as a 24-bit bus switch, or as a 12-bit bus-exchange that provides data exchanging between four signal ports. The select (S0, S1, S2) inputs control the data path of the bus-exchange switch. When the bus-exchange switch is ON, the A port is connected to the B port, allowing bidirectional data flow between ports. When the bus-exchange switch is disabled, a high-impedance state exists between the A and B ports.

This device is fully specified for partial-power-down applications using I_off. The I_off feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, each select input should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

ELECTRONIC COMPONENTS
All In One Distributor

SN74CBT16212C

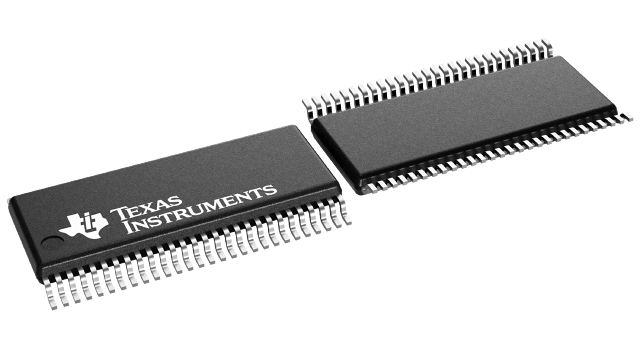

5-V, crosspoint/exchange, 24-channel FET bus switch with –2-V undershoot protection
