0
ACTIVE
Number of channels |
2 |
Output type |
Push-Pull |
Propagation delay time (µs) |
5.5 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
1.5 |
Rating |
Catalog |
Features |
Fail-safe, Hysteresis, Internal Reference, POR |
Iq per channel (typ) (mA) |
0.002 |
Vos (offset voltage at 25°C) (max) (mV) |
6 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
15 |
VICR (max) (V) |
5.5 |
VICR (min) (V) |
1.5 |

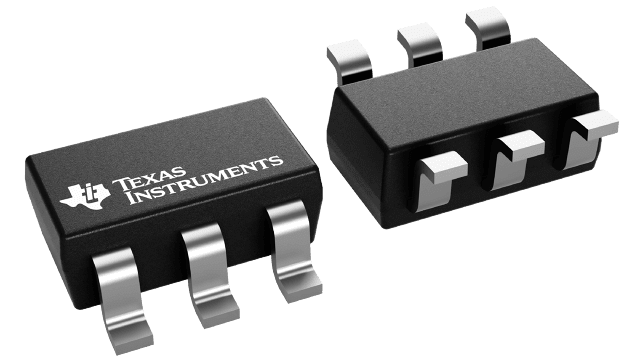

SOT-23 (DBV)-6-8.12 mm² 2.9 x 2.8
The TLV4062 and TLV4082 are a family of high-accuracy, dual-channel comparators featuring low power and small solution size. The IN1 and IN2 inputs include hysteresis to reject brief glitches, thus ensuring stable output operation without false triggering.

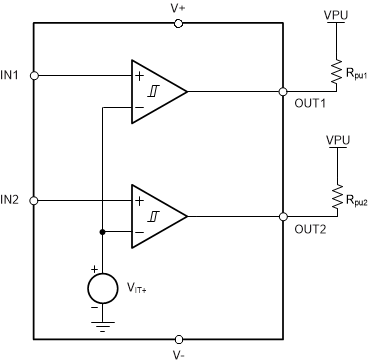

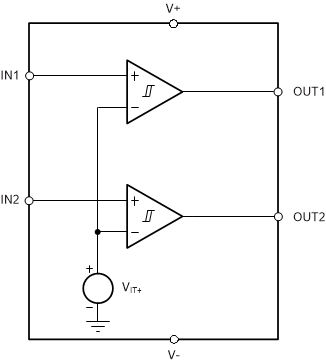

The TLV4062 and TLV4082 have adjustable INx inputs that can be configured by an external resistor divider pair. When the voltage at the IN1 or IN2 input goes below the falling threshold, OUT1 or OUT2 is driven low, respectively. When IN1 or IN2 rises above the rising threshold, OUT1 or OUT2 goes high, respectively.
The comparators have a very low quiescent current of 2 µA (typical) and provide a precise, space-conscious solution for low-power, voltage monitoring. The TLV4062 and TLV4082 operate from 1.5 V to 5.5 V, over the –40°C to +125°C temperature range.
