ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
24 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.25 |
Offset drift (typ) (µV/°C) |
0.1 |
Input bias current (max) (pA) |
600 |
GBW (typ) (MHz) |
0.75 |
Features |
Cost Optimized, EMI Hardened, High Cload Drive, Small Size, Zero Drift |
Slew rate (typ) (V/µs) |
0.35 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.09 |
Vn at 1 kHz (typ) (nV√Hz) |
38 |
CMRR (typ) (dB) |
134 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.02 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
0.06 |
Output swing headroom (to positive supply) (typ) (V) |
-0.06 |
SOIC (D)-8-29.4 mm² 4.9 x 6
The TLV2186 is a low-power, 24-V, rail-to-rail input and output zero-drift operational amplifier (op amp). The TLV2186 features only 10 µV of offset voltage (typical) and 0.1 µV/°C of offset voltage drift over temperature (typical). This device is a great choice for precision instrumentation, signal measurement, and active filtering applications.
Low quiescent current consumption (90 µA) makes the TLV2186 an excellent option for power-sensitive applications, such as battery-powered instrumentation and portable systems.

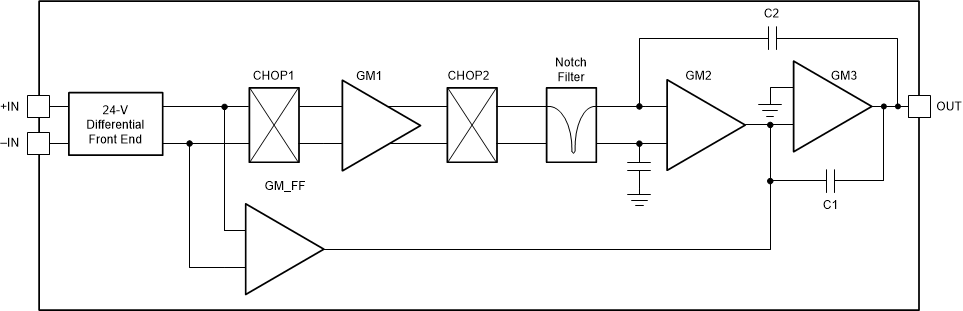

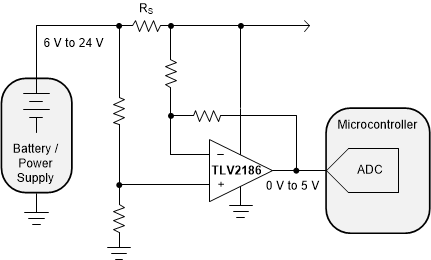

Moreover, the high common-mode architecture along with low offset voltage allows for high-side current shunt monitoring at the positive rail. This device also provides robust ESD protection during shipment, handling, and assembly.
The device is specified for operation from –40°C to +125°C. The TLV2186 is offered in WSON-8 and SO-8 packages.
