EMB1412
  • EMB1412
  • EMB1412

EMB1412

ACTIVE

MOSFET gate driver

Texas Instruments EMB1412 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Features

MOSFET Gate Driver

Device type

Cell monitor and balancer

Operating temperature range (°C)

-40 to 125

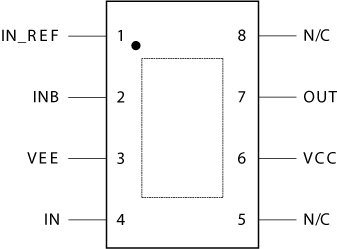

Package

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9

Features

  • Compound CMOS and Bipolar Outputs Reduce
    Output Current Variation
  • 7 A Sink/3 A Source Current
  • Fast Propagation Times (25 ns Typical)
  • Fast Rise and Fall Times (14 ns/12 ns Rise
    Fall with 2 nF Load)
  • Inverting and Non-Inverting Inputs Provide
    Either Configuration with a Single Device
  • Supply Rail Under-Voltage Lockout Protection
  • Dedicated Input Ground (IN_REF) for Split
    Supply or Single Supply Operation
  • Thermally Enhanced 8-Pin VSSOP Package
  • Output Swings from VCC to VEE Which can
    be Negative Relative to Input Ground
  • Compound CMOS and Bipolar Outputs Reduce
    Output Current Variation
  • 7 A Sink/3 A Source Current
  • Fast Propagation Times (25 ns Typical)
  • Fast Rise and Fall Times (14 ns/12 ns Rise
    Fall with 2 nF Load)
  • Inverting and Non-Inverting Inputs Provide
    Either Configuration with a Single Device
  • Supply Rail Under-Voltage Lockout Protection
  • Dedicated Input Ground (IN_REF) for Split
    Supply or Single Supply Operation
  • Thermally Enhanced 8-Pin VSSOP Package
  • Output Swings from VCC to VEE Which can
    be Negative Relative to Input Ground

Description

The EMB1412 MOSFET gate driver provides high peak gate drive current in 8-lead exposed-pad VSSOP package, with improved power dissipation required for high frequency operation. The compound output driver stage includes MOS and bipolar transistors operating in parallel that together sink more than 7-A peak from capacitive loads. Combining the unique characteristics of MOS and bipolar devices reduces drive current variation with voltage and temperature. Under-voltage lockout protection is provided to prevent damage to the MOSFET due to insufficient gate turn-on voltage. The EMB1412 provides both inverting and non-inverting inputs to satisfy requirements for inverting and non-inverting gate drive with a single device type.

The EMB1412 MOSFET gate driver provides high peak gate drive current in 8-lead exposed-pad VSSOP package, with improved power dissipation required for high frequency operation. The compound output driver stage includes MOS and bipolar transistors operating in parallel that together sink more than 7-A peak from capacitive loads. Combining the unique characteristics of MOS and bipolar devices reduces drive current variation with voltage and temperature. Under-voltage lockout protection is provided to prevent damage to the MOSFET due to insufficient gate turn-on voltage. The EMB1412 provides both inverting and non-inverting inputs to satisfy requirements for inverting and non-inverting gate drive with a single device type.
