0
ACTIVE
Type |
RF Gain Block |
Frequency (min) (MHz) |
50 |
Frequency (max) (MHz) |
750 |
Gain (typ) (dB) |
15.6 |
Noise figure (typ) (dB) |
4 |
OIP3 (typ) (dBm) |
35 |
P1dB (typ) (dBm) |
20.6 |
Frequency of harmonic distortion measurement (Hz) |
350000000 |
Supply voltage (V) |
5 |
Current consumption (mA) |
100 |
Power consumption (typ) (W) |
0.5 |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |
Output enable |
No |

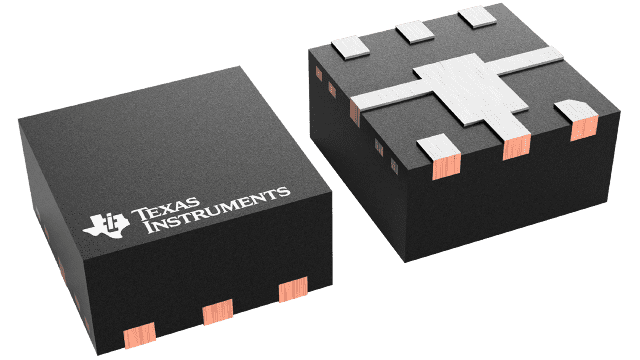

VSON (DRW)-6-4 mm² 2 x 2

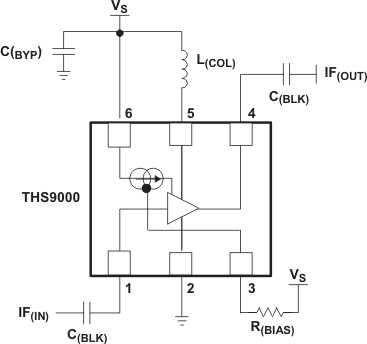

The THS9000 is a medium power, cascadeable, gain block optimized for high IF frequencies. The amplifier incorporates internal impedance matching to 50 Ω. The part mounted on the standard EVM achieves greater than 15-dB input and output return loss from 50 MHz to 325 MHz with VS = 5 V, R(BIAS) = 237 Ω, L(COL) = 470 nH. Design requires only two dc-blocking capacitors, one power-supply bypass capacitor, one RF choke, and one bias resistor.
