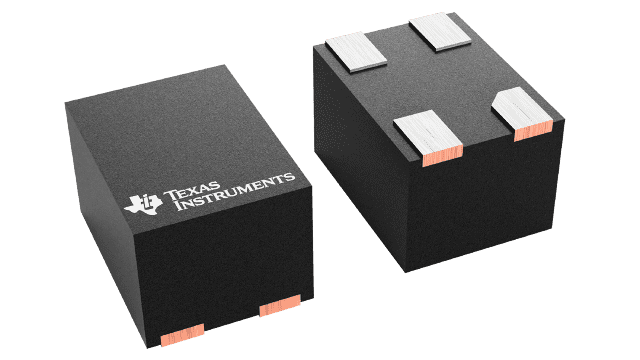

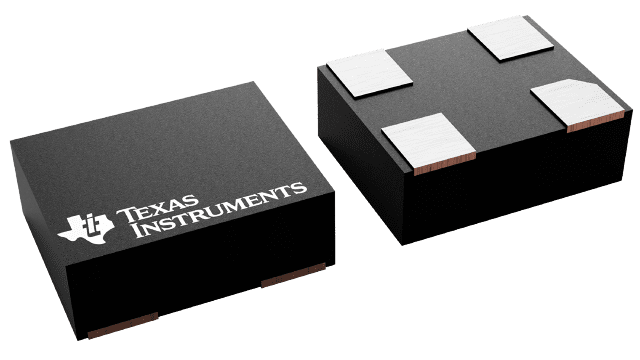

CDC6C-Q1
  • CDC6C-Q1
  • CDC6C-Q1
  • CDC6C-Q1

CDC6C-Q1

ACTIVE

Automotive, low-power, low-ppm, bulk-acoustic-wave (BAW), fixed-frequency LVCMOS oscillator

Texas Instruments CDC6C-Q1 Product Info

1 April 2026 0

Parameters

Output type

LVCMOS

Output frequency (MHz)

20, 25, 27, 33.333, 40, 50, 100, 125

Stability (ppm)

+/-25

Supply voltage (V)

1.8, 2.5, 3.3

Operating temperature range (°C)

-40 to 125

Jitter (ps)

0.4

Frequency range

250 kHz - 200 MHz

Package

VSON (DLF)-4-5 mm² 2.5 x 2

Features

  • AEC Q-100 qualified:
    • Device temperature grade 1: –40°C to +125°C
  • Functional Safety-Capable:
  • LVCMOS output oscillator supporting frequency range from 250kHz to 200MHz
  • Supply voltage supports 1.8V to 3.3V ±10%.
  • Very low power consumption: 4.57mA typical and 7.9mA maximum for 25MHz at 1.8V
  • Stand by current 1.5µA typical at 1.8V helps for battery powered applications
  • Low jitter: < 750fs RMS jitter for Fout ≥ 10MHz
  • Smallest industry wettable flank standard package: 1.60mm × 1.20mm (DLY), 2.00mm × 1.60mm (DLR), 2.5mm × 2.00mm (DLF), 3.20mm × 2.5mm (DLN)
    • Universal land pattern footprint under Mechanical, Packaging, and Orderable Information
  • Integrated LDO for robust supply noise immunity
  • Start-up time < 3ms
    • Contact TI for different start-up times.
  • Orderable options for slow rise and fall time for EMI reduction
  • Supported frequencies (MHz):
    • 1.2, 2.048, 4, 5.12, 6.78, 8, 8.192, 10, 12, 12.288, 16, 19.2, 20, 24, 24.576, 25, 26, 27, 30, 33.33, 33.333, 38.4, 40, 48, 50, 66.666, 76.8, 100, 125, 156.25, and more
  • Contact TI representative for any frequency and samples needed.
  • AEC Q-100 qualified:
    • Device temperature grade 1: –40°C to +125°C
  • Functional Safety-Capable:
  • LVCMOS output oscillator supporting frequency range from 250kHz to 200MHz
  • Supply voltage supports 1.8V to 3.3V ±10%.
  • Very low power consumption: 4.57mA typical and 7.9mA maximum for 25MHz at 1.8V
  • Stand by current 1.5µA typical at 1.8V helps for battery powered applications
  • Low jitter: < 750fs RMS jitter for Fout ≥ 10MHz
  • Smallest industry wettable flank standard package: 1.60mm × 1.20mm (DLY), 2.00mm × 1.60mm (DLR), 2.5mm × 2.00mm (DLF), 3.20mm × 2.5mm (DLN)
    • Universal land pattern footprint under Mechanical, Packaging, and Orderable Information
  • Integrated LDO for robust supply noise immunity
  • Start-up time < 3ms
    • Contact TI for different start-up times.
  • Orderable options for slow rise and fall time for EMI reduction
  • Supported frequencies (MHz):
    • 1.2, 2.048, 4, 5.12, 6.78, 8, 8.192, 10, 12, 12.288, 16, 19.2, 20, 24, 24.576, 25, 26, 27, 30, 33.33, 33.333, 38.4, 40, 48, 50, 66.666, 76.8, 100, 125, 156.25, and more
  • Contact TI representative for any frequency and samples needed.

Description

Texas Instruments’ high-precision Bulk-Acoustic Wave (BAW) micro-resonator technology is integrated directly into a package allowing for low jitter clock circuitry. BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes.

The CDC6Cx-Q1 device is a low jitter, low power, fixed-frequency oscillator which incorporates the BAW as the resonator source. The device is factory-programmed per specific frequency and function pin. With a frequency control logic and output frequency divider, the CDC6Cx-Q1 is capable of producing any frequency within the specified range providing a single device family for all frequency needs.

The high-performance clocking, mechanical stability, lower power consumption, flexibility, and small package options for this device are designed for reference clock and core clocks in automotive applications.

Texas Instruments’ high-precision Bulk-Acoustic Wave (BAW) micro-resonator technology is integrated directly into a package allowing for low jitter clock circuitry. BAW is fully designed and manufactured at TI factories like other silicon-based fabrication processes.

The CDC6Cx-Q1 device is a low jitter, low power, fixed-frequency oscillator which incorporates the BAW as the resonator source. The device is factory-programmed per specific frequency and function pin. With a frequency control logic and output frequency divider, the CDC6Cx-Q1 is capable of producing any frequency within the specified range providing a single device family for all frequency needs.

The high-performance clocking, mechanical stability, lower power consumption, flexibility, and small package options for this device are designed for reference clock and core clocks in automotive applications.
