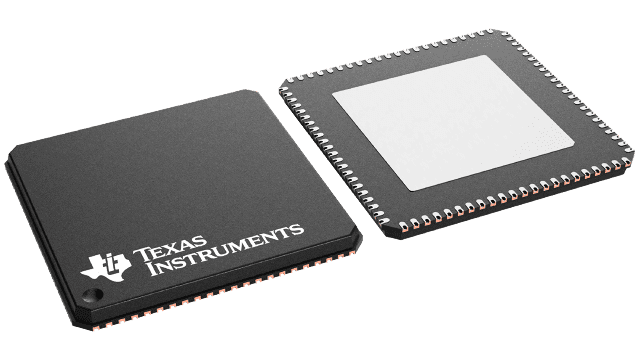

TDES4940
  • TDES4940

TDES4940

ACTIVE

4K V³Link™ to DP/eDP deserializer for high-resolution panels

Texas Instruments TDES4940 Product Info

1 April 2026 0

Parameters

Applications

Display SerDes

Color depth (bpp)

30

Function

Deserializer

Input compatibility

FPD-Link IV LVDS

Output compatibility

DisplayPort/eDP

Features

Daisy chain, Low-EMI Point-to-Point Communication, Spread-Spectrum Clock (SSC) Generation

Signal conditioning

Adaptive Equalizer

EMI reduction

LVDS

Diagnostics

BIST

Rating

Catalog

Operating temperature range (°C)

-20 to 85

Package

VQFNP (RUR)-88-144 mm² 12 x 12

Features

  • DisplayPort (DP) / Embedded DisplayPort (eDP) Transmitter
    • VESA DP v1.4a/eDP v1.4b transmitter
    • HBR3/HBR2/HBR/RBR Link Bit Rates
    • Main link: 1, 2, or 4 lanes
    • Each lane up to 8.1Gbps
    • AUX CH 1Mbps
    • Hot Plug Detect (HPD)
    • Extracts aggregated video streams to local eDP display
    • Designed for 4 K @ 60 Hz video resolution
    • Stream synchronization and splitting
  • V 3Link enhanced video interface
    • 13.5/12.528/10.8/6.75/3.375 Gbps per Channel; Up to 27 Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Ultra-low latency control channel
    • Two fast-mode plus I2C up to 1 MHz (up to 3.4 MHz local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass through GPIOs
  • Compatibility
    • Integrated HDCP v1.4 with on-chip keys
    • V 3Link video and V 3Link enhanced video product families
  • Image enhancement (white balance and dithering)
  • Security and diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread spectrum clocking generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V dual power supply
  • Qualifications
    • ISO 10605 and IEC 61000-4-2 ESD compliant
    • Temperature: -20°C to +85°C
  • DisplayPort (DP) / Embedded DisplayPort (eDP) Transmitter
    • VESA DP v1.4a/eDP v1.4b transmitter
    • HBR3/HBR2/HBR/RBR Link Bit Rates
    • Main link: 1, 2, or 4 lanes
    • Each lane up to 8.1Gbps
    • AUX CH 1Mbps
    • Hot Plug Detect (HPD)
    • Extracts aggregated video streams to local eDP display
    • Designed for 4 K @ 60 Hz video resolution
    • Stream synchronization and splitting
  • V 3Link enhanced video interface
    • 13.5/12.528/10.8/6.75/3.375 Gbps per Channel; Up to 27 Gbps over dual channels
    • Coax/STP interconnect support
    • Selectable 1, 2 channels
    • Daisy-chain and splitting
    • Adaptive equalization
  • Ultra-low latency control channel
    • Two fast-mode plus I2C up to 1 MHz (up to 3.4 MHz local bus access)
    • High-speed GPIOs
    • Supports SPI and UART pass through GPIOs
  • Compatibility
    • Integrated HDCP v1.4 with on-chip keys
    • V 3Link video and V 3Link enhanced video product families
  • Image enhancement (white balance and dithering)
  • Security and diagnostics
    • Voltage and temperature monitoring
    • BIST and pattern generation
    • CRC and error diagnostics
    • ECC on control bits
    • Unique ID for counterfeit protection
  • Advanced link robustness and EMC control
    • Spread spectrum clocking generation (SSCG)
    • Adaptive Receiver Equalization (AEQ)
  • Low power operation
    • 1.8V and 1.15V dual power supply
  • Qualifications
    • ISO 10605 and IEC 61000-4-2 ESD compliant
    • Temperature: -20°C to +85°C

Description

The TDES4940 is a V 3Link Enhanced Video to DisplayPort (DP) / Embedded DisplayPort (eDP) bridge device. In conjunction with a V 3Link Enhanced Video serializer, the chipset receives a high-speed serialized interface over low-cost 50 Ω coax or STP/STQ cables. The TDES4940 is a VESA DP v1.4a/eDP v1.4b compatible device that supports advanced features such as HBR3, and SuperFrame formats. The device supports video resolutions of 4K 30-bit color and higher. The V 3Link Enhanced Video supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video data and control over V 3Link Enhanced Video lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In compatible V 3Link mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link as well as HDCP v1.4 support when paired with an HDCP capable serializer.

The TDES4940 is a V 3Link Enhanced Video to DisplayPort (DP) / Embedded DisplayPort (eDP) bridge device. In conjunction with a V 3Link Enhanced Video serializer, the chipset receives a high-speed serialized interface over low-cost 50 Ω coax or STP/STQ cables. The TDES4940 is a VESA DP v1.4a/eDP v1.4b compatible device that supports advanced features such as HBR3, and SuperFrame formats. The device supports video resolutions of 4K 30-bit color and higher. The V 3Link Enhanced Video supports video and audio data transmission and full duplex control, including I2C, and GPIO data over the same link. Consolidation of video data and control over V 3Link Enhanced Video lanes reduces the interconnect size and weight and simplifies system design. EMI is minimized by the use of low voltage differential signaling, data scrambling, and randomization. In compatible V 3Link mode, the device supports up to 2K resolutions with 24-bit color depth over a single/dual link as well as HDCP v1.4 support when paired with an HDCP capable serializer.
