ACTIVE
Technology family |
LVC |
Supply voltage (min) (V) |
1.1 |
Supply voltage (max) (V) |
3.6 |
Input type |
CMOS |
Output type |
Push-Pull |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff) |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
SOIC (D)-16-59.4 mm² 9.9 x 6
High push-pull output drive strength:

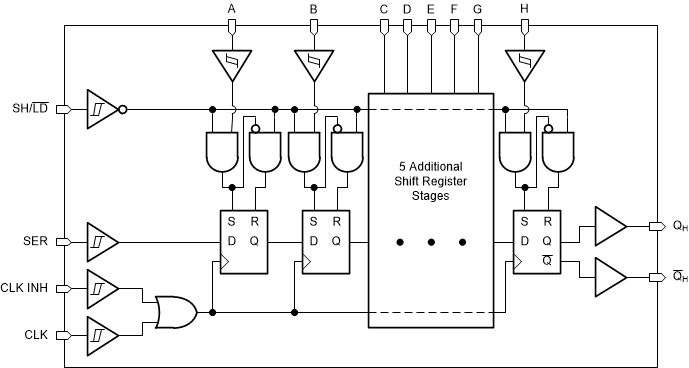

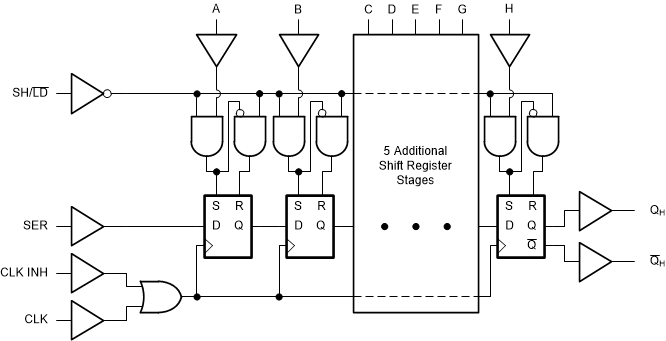

The SN74LVC165A-Q1 contains one 8-bit parallel-load shift register. Data is loaded asynchronously using the shift or load (SH/LD) select pin. The device includes a serial (SER) input to allow for daisy chaining, and a standard (QH) and inverted (QH) output.
