0
ACTIVE
Number of receivers |
0 |
Number of transmitters |
4 |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
20 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-12 to 12 |
Common-mode range (V) |
-3 to 3 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
45000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |

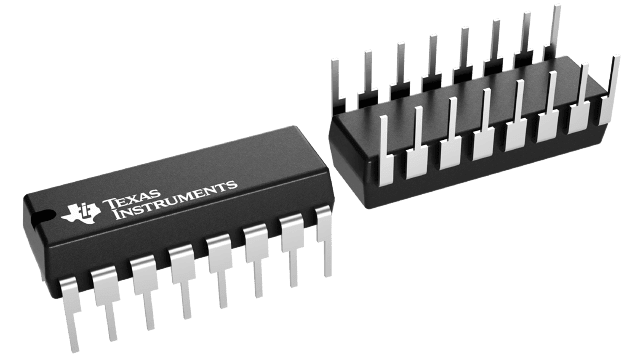

PDIP (N)-16-181.42 mm² 19.3 x 9.4

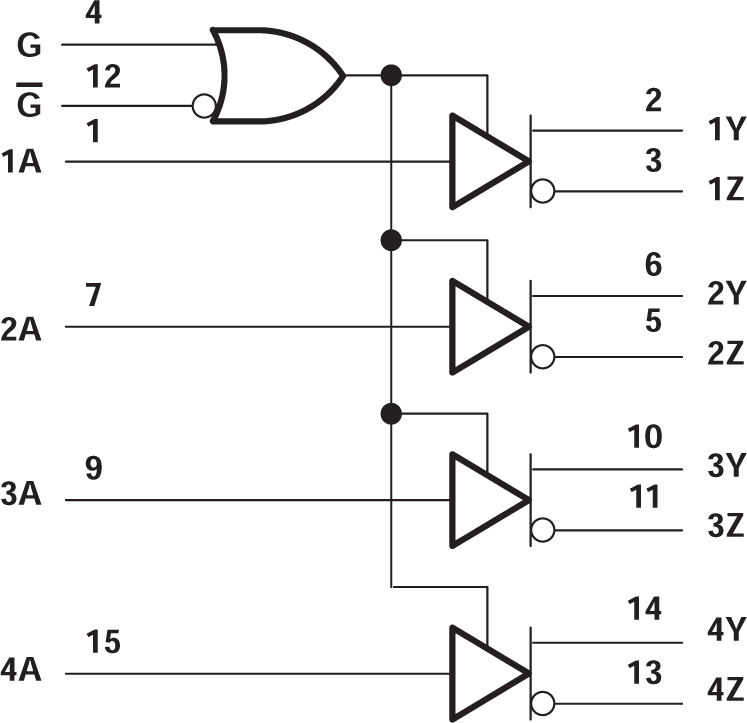

The four differential line drivers are designed for data transmission over twisted-pair or parallel-wire transmission lines. They meet the requirements of ANSI Standard EIA/TIA-422-B and ITU Recommendations V.11 and are compatible with 3-state TTL circuits. Advanced low-power Schottky technology provides high speed without the usual power penalties. Standby supply current is typically only 26mA, while typical propagation delay time is less than 10ns.

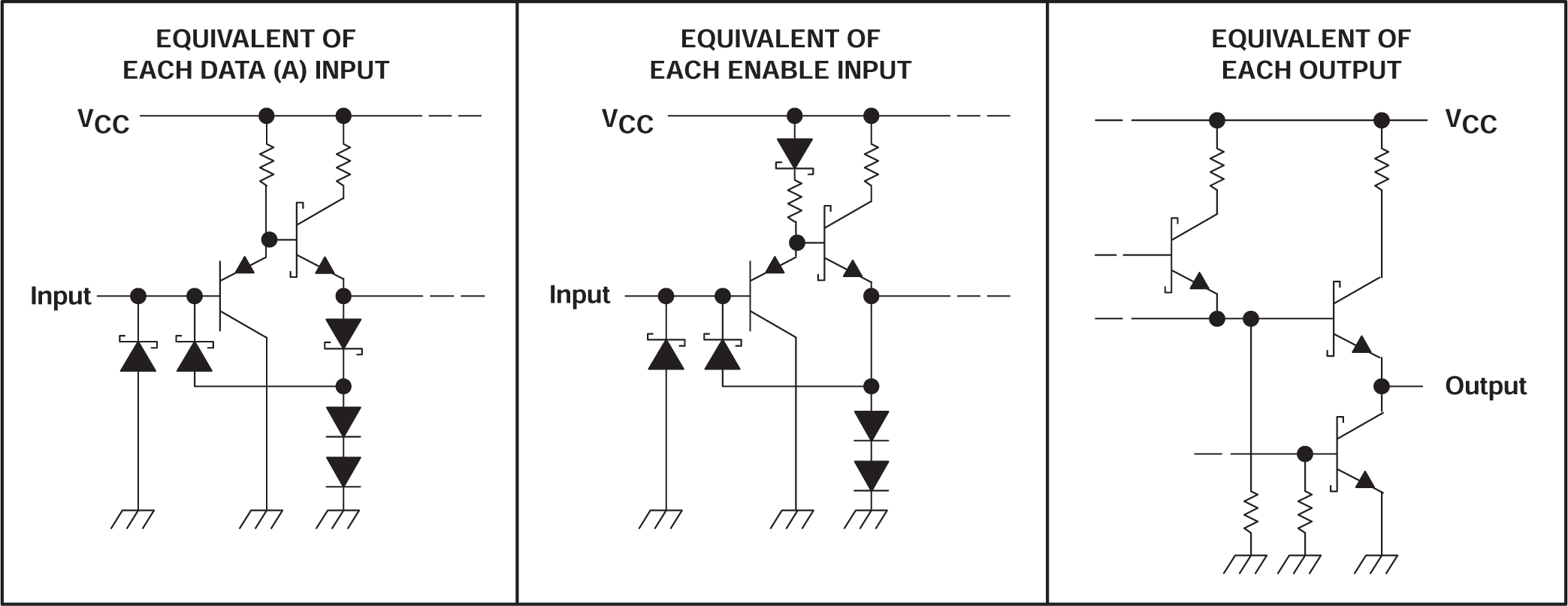

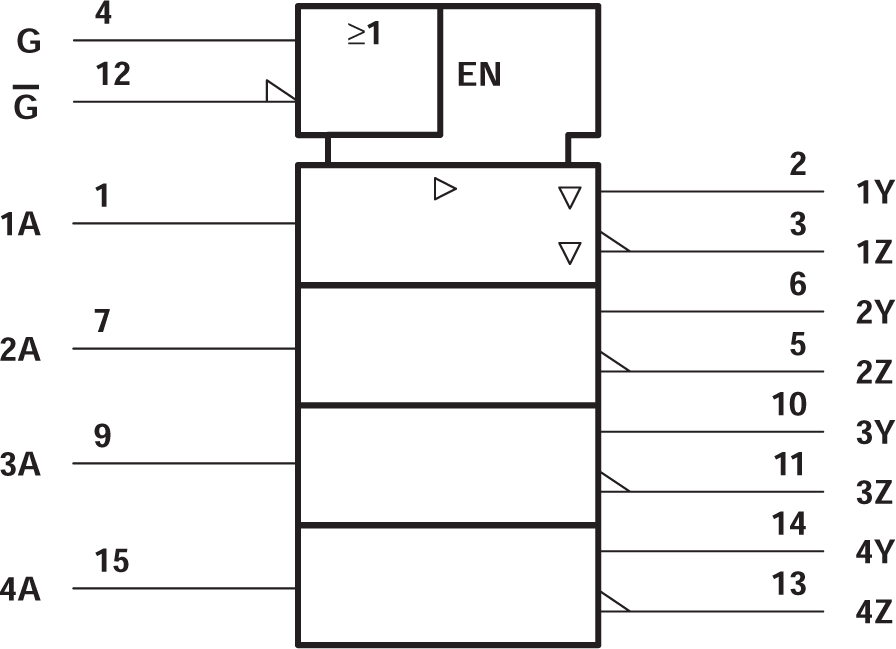

High-impedance inputs maintain low input currents, less than µA for a high level and less than 100µA for a low level. Complementary output-enable inputs (G and G) allow these devices to be enabled at either a high input level or low input level. The SN75ALS192 is capable of data rates in excess of 20 Mbit/s and is designed to operate with the SN75ALS193 quadruple line receiver.
The SN75ALS192 is characterized for operation from 0°C to 70°C.
