AM26LV32
  • AM26LV32
  • AM26LV32
  • AM26LV32
  • AM26LV32

AM26LV32

ACTIVE

Low-Voltage High-Speed Quadruple Differential Line Receiver

Texas Instruments AM26LV32 Product Info

1 April 2026 0

Parameters

Number of receivers

4

Number of transmitters

0

Duplex

Half

Supply voltage (nom) (V)

3.3

Signaling rate (max) (Mbps)

32

IEC 61000-4-2 contact (±V)

None

Fault protection (V)

-12 to 12

Common-mode range (V)

-0.3 to 5.5

Number of nodes

32

Isolated

No

Supply current (max) (µA)

17000

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

  • Switching rates up to 32 MHz
  • Operates from single 3.3-V supply
  • Ultra-low power dissipation: 27 mW typical
  • Open-circuit, short-circuit, and terminated fail-safe
  • −0.3-V to 5.5-V Common-mode range with ±200-mV sensitivity
  • Accepts 5-V logic inputs with 3.3-V V CC
  • Input hysteresis: 50 mV typical
  • 235 mW With four receivers at 32 MHz
  • Pin-to-pin compatible with AM26C32 and AM26LS32
  • Switching rates up to 32 MHz
  • Operates from single 3.3-V supply
  • Ultra-low power dissipation: 27 mW typical
  • Open-circuit, short-circuit, and terminated fail-safe
  • −0.3-V to 5.5-V Common-mode range with ±200-mV sensitivity
  • Accepts 5-V logic inputs with 3.3-V V CC
  • Input hysteresis: 50 mV typical
  • 235 mW With four receivers at 32 MHz
  • Pin-to-pin compatible with AM26C32 and AM26LS32

Description

The AM26LV32 device is a BiCMOS, quadruple differential line receiver with 3-state outputs, which is designed to be similar to the TIA/EIA-422-B and ITU Recommendation V.11 receivers with reduced common-mode voltage range due to reduced supply voltage.

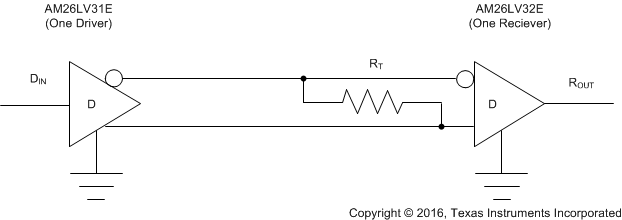

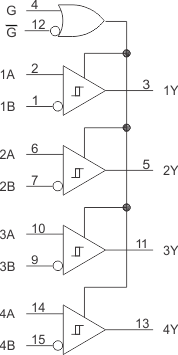

The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range from −0.3 V to 5.5 V. When the inputs are open-circuit, the outputs are in the high logic state.

The AM26LV32C is characterized for operation from 0°C to 70°C. The AM26LV32I is characterized for operation from −40°C to 85°C.

The AM26LV32 device is a BiCMOS, quadruple differential line receiver with 3-state outputs, which is designed to be similar to the TIA/EIA-422-B and ITU Recommendation V.11 receivers with reduced common-mode voltage range due to reduced supply voltage.

The device is optimized for balanced bus transmission at switching rates up to 32 MHz. The enable function is common to all four receivers and offers a choice of active-high or active-low inputs. The 3-state outputs permit connection directly to a bus-organized system. Each device features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range from −0.3 V to 5.5 V. When the inputs are open-circuit, the outputs are in the high logic state.

The AM26LV32C is characterized for operation from 0°C to 70°C. The AM26LV32I is characterized for operation from −40°C to 85°C.
