0
ACTIVE
Number of receivers |
4 |
Number of transmitters |
0 |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
10 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-10 to 15 |
Common-mode range (V) |
-7 to 12 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
24000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |

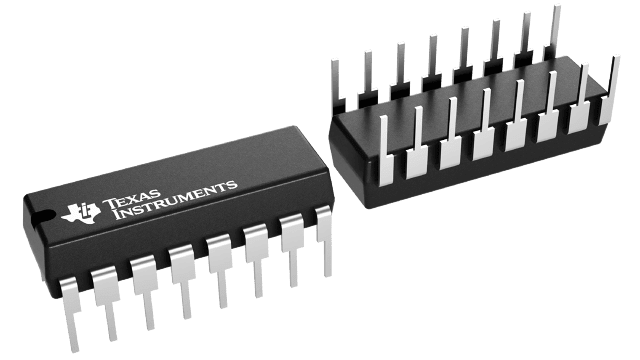

PDIP (N)-16-181.42 mm² 19.3 x 9.4

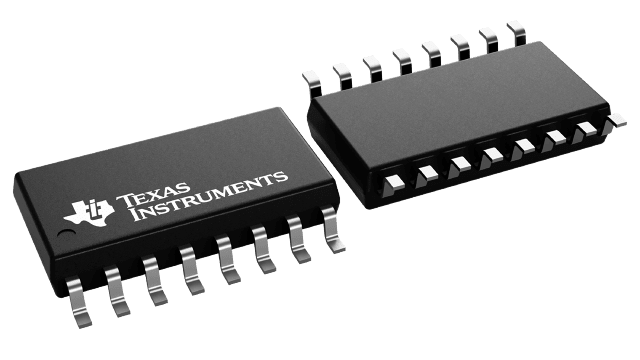

The SN75ALS173 is a monolithic quadruple differential line receiver with 3-state outputs. It is designed to meet the requirements of ANSI Standards EIA/TIA-422-B, EIA/TIA-423-B, RS-485, and several ITU recommendations. Advanced low-power Schottky technology provides high speed without the usual power penalty. The four receivers have an ORed pair of enables in common. Either G high or G low enables all of the receivers. The device features high input impedance, input hysteresis for increased noise immunity, and input sensitivity of ±200 mV over a common-mode input voltage range of –12 V to 12 V.
The SN75ALS173 is characterized for operation from 0°C to 70°C.
