ACTIVE
Architecture |
Current FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
10 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
GBW (typ) (MHz) |
1700 |
BW at Acl (MHz) |
1700 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
3100 |
Vn at flatband (typ) (nV√Hz) |
1.83 |
Vn at 1 kHz (typ) (nV√Hz) |
4.5 |
Iq per channel (typ) (mA) |
12.5 |
Vos (offset voltage at 25°C) (max) (mV) |
4.5 |
Rail-to-rail |
No |
Rating |
Space |
Operating temperature range (°C) |
-55 to 125 |
CMRR (typ) (dB) |
48 |
Input bias current (max) (pA) |
15000000 |
Offset drift (typ) (µV/°C) |
13 |
Iout (typ) (mA) |
80 |
2nd harmonic (dBc) |
52 |
3rd harmonic (dBc) |
62 |
Frequency of harmonic distortion measurement (MHz) |
20 |
Radiation, TID (typ) (krad) |
300 |
Radiation, SEL (MeV·cm2/mg) |
Bipolar |

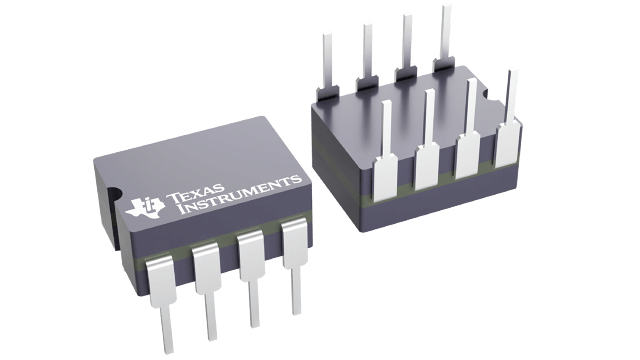

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87
The LMH6702QML-SP is a very wideband, dc-coupled, monolithic operational amplifier designed specifically for wide-dynamic-range systems requiring exceptional signal fidelity. Benefiting from TIs current-feedback architecture, the LMH6702QML-SP offers unity gain stability at exceptional speed without need for external compensation.

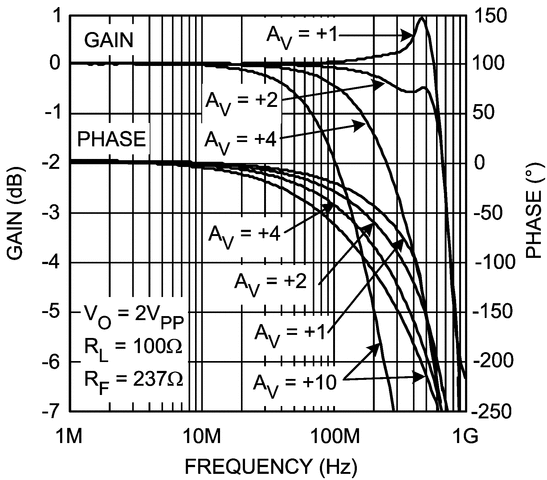

With a 720MHz bandwidth (AV = 2V/V, VO = 2VPP), 10-bit distortion levels through 60MHz (RL = 100Ω), 1.83nV/√Hz input-referred noise, and 12.5mA supply current, the LMH6702QML-SP is an excellent driver or buffer for high-speed flash analog-to-digital (A/D) and digital-to-analog (D/A) converters.
The LMH6702QML-SP benefits wide dynamic range systems, such as radar and communication receivers, that require a wideband amplifier offering exceptional signal purity. The low input-referred noise and low harmonic and intermodulation distortion make this device an excellent choice for high-speed applications.
The LMH6702QML-SP is constructed using TIs VIP10 complimentary bipolar process and TIs proven current-feedback architecture.
