0
ACTIVE
Number of receivers |
2 |
Number of transmitters |
0 |
Supply voltage (nom) (V) |
5 |
Signaling rate (max) (Mbps) |
4 |
IEC 61000-4-2 contact (±V) |
None |
Fault protection (V) |
-10 to 15 |
Common-mode range (V) |
-7 to 12 |
Number of nodes |
32 |
Isolated |
No |
Supply current (max) (µA) |
50000 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

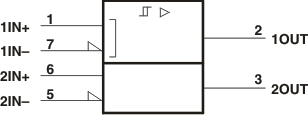

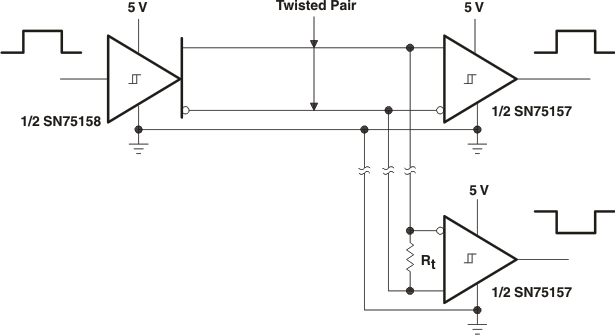

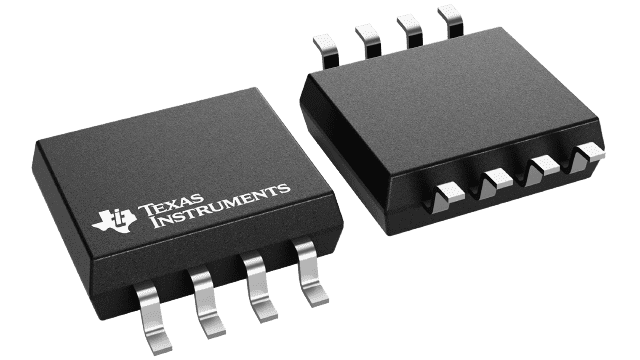

The SN75157 is a dual differential line receiver designed to meet standards EIA/TIA-422-B and EIA/TIA-423-B and ITU V.10 and V.11. The device uses Schottky circuitry, and has TTL-compatible outputs. The inputs are compatible with either a single-ended or a differential-line system. The device operates from a single 5V power supply and is supplied in 8-pin dual-in-line and small-outline packages.
The SN75157 is characterized for operation from 0°C to 70°C.
