ACTIVE
Input voltage type |
DC/DC |
Topology |
Boost, current mode |
Vin (min) (V) |
2.7 |
Vin (max) (V) |
5.5 |
Vout (max) (V) |
5.5 |
Vout (min) (V) |
2.5 |
Iout (max) (A) |
1.2 |
Iq (typ) (mA) |
0.63 |
Features |
I2C control |
Operating temperature range (°C) |
-30 to 85 |
Dimming method |
Analog, PWM |
Number of channels |
2 |
Rating |
Catalog |

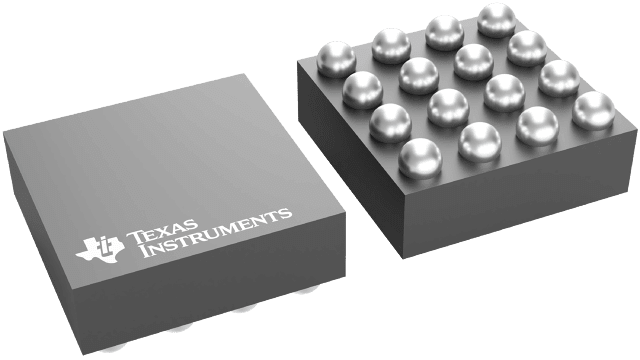

DSBGA (YFQ)-16-3.24 mm² 1.8 x 1.8

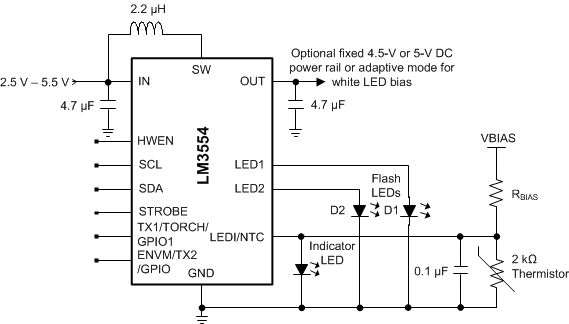

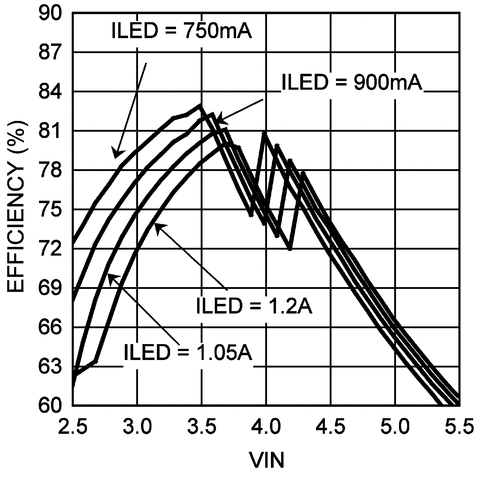

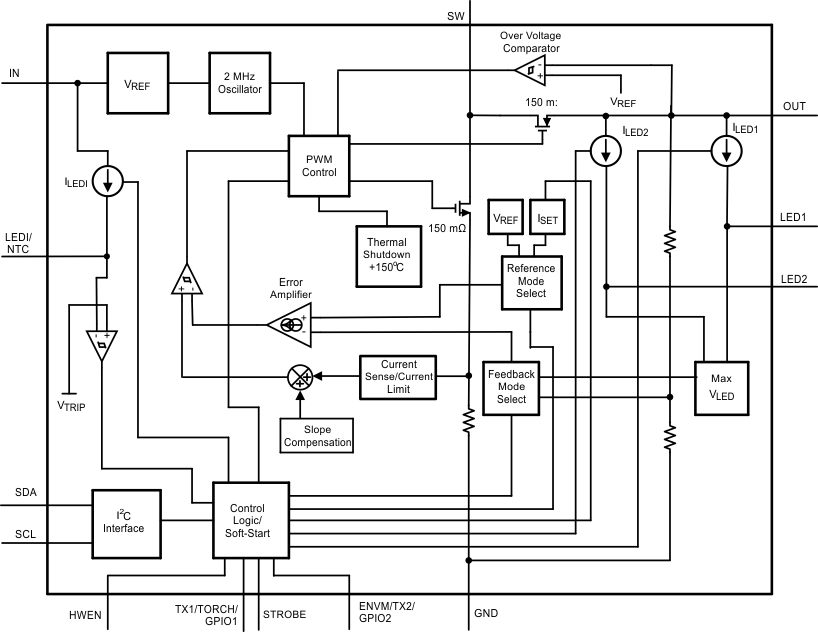

The LM3554 is a 2-MHz fixed-frequency, current-mode synchronous boost converter. The device is designed to operate as a dual 600-mA (1.2 A total) constant-current driver for high-current white LEDs, or as a regulated 4.5-V or 5-V voltage source.
The main features include: an I2C-compatible interface for controlling the LED current or the desired output voltage, a hardware flash enable input for direct triggering of the flash pulse, and dual TX inputs which force the flash pulse into a low-current torch mode allowing for synchronization to RF power amplifier events or other high-current conditions. Additionally, an active high hardware enable (HWEN) input provides a hardware shutdown during system software failures.
Five protection features are available within the LM3554 including a software selectable input voltage monitor, an internal comparator for interfacing with an external temperature sensor, four selectable current limits to ensure the battery current is kept below a predetermined peak level, an overvoltage protection feature to limit the output voltage during LED open circuits, and an output short circuit protection which limits the output current during shorts to GND.
For all available packages, see the orderable addendum at the end of the data sheet.WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK
