Texas Instruments SN74LVC7266A-Q1 Product Info

Parameters

Technology family	LVC
Number of channels	4
Inputs per channel	2
IOL (max) (mA)	24
Input type	Standard CMOS
IOH (max) (mA)	-24
Output type	Push-Pull
Features	Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	100
Rating	Automotive
Operating temperature range (°C)	-40 to 125

TSSOP (PW)-14-32 mm² 5 x 6.4

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B

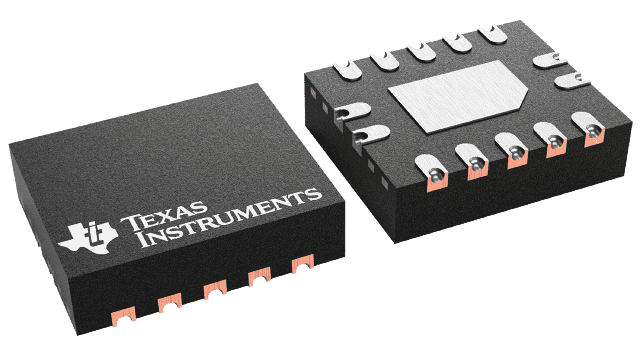

Available in wettable flank QFN (WBQA) package
Operating range from 1.1V to 3.6V
5.5V tolerant input pins
Supports standard pinouts
Latch-up performance exceeds 250mAper JESD 17
ESD protection exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in wettable flank QFN (WBQA) package
Operating range from 1.1V to 3.6V
5.5V tolerant input pins
Supports standard pinouts
Latch-up performance exceeds 250mAper JESD 17
ESD protection exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 1000-V Charged-Device Model (C101)

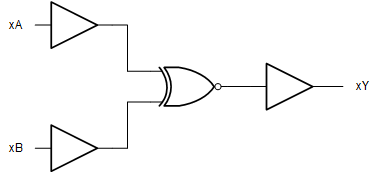

The SN74LVC7266A-Q1 contains four independent 2-input XNOR gates. Each gate performs the Boolean function Y = A ⊕ B in positive logic.
