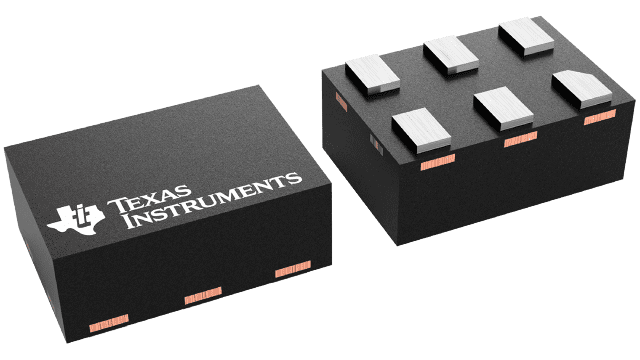

SN74LVC2GU04-Q1

ACTIVE

Texas Instruments SN74LVC2GU04-Q1 Product Info

1 April 2026 0

Technology family	LVC
Supply voltage (min) (V)	1.65
Supply voltage (max) (V)	5.5
Number of channels	2
IOL (max) (mA)	-32
IOH (max) (mA)	-32
Supply current (max) (µA)	10
Input type	Standard CMOS
Output type	Push-Pull
Features	Balanced outputs, Over-voltage tolerant inputs, Partial power down (Ioff), Unbuffered, Very high speed (tpd 5-10ns)
Rating	Automotive
Operating temperature range (°C)	-40 to 125

SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1

AEC-Q100 Qualified for automotive applications:
- Device temperature grade 1: –40°C to +125°C, TA
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Max tpd of 3.7ns at 3.3V
Low power consumption, 10µA max ICC
±24mA Output drive at 3.3V
Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
Typical VOHV (output VOH undershoot) >2V at VCC = 3.3V, TA = 25°C
Can be used as a down translator to translate inputs from a max of 5.5V down to the VCC level
Unbuffered outputs

AEC-Q100 Qualified for automotive applications:
- Device temperature grade 1: –40°C to +125°C, TA
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Max tpd of 3.7ns at 3.3V
Low power consumption, 10µA max ICC
±24mA Output drive at 3.3V
Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
Typical VOHV (output VOH undershoot) >2V at VCC = 3.3V, TA = 25°C
Can be used as a down translator to translate inputs from a max of 5.5V down to the VCC level
Unbuffered outputs

This dual inverter is designed for 1.65V to 5.5V VCC operation.

The SN74LVC2GU04-Q1 device contains two inverters with unbuffered outputs and performs the Boolean function Y = A.

This dual inverter is designed for 1.65V to 5.5V VCC operation.

The SN74LVC2GU04-Q1 device contains two inverters with unbuffered outputs and performs the Boolean function Y = A.
