ACTIVE
Technology family |
LVC |
Supply voltage (min) (V) |
1.1 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
2 |
Inputs per channel |
4 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Input type |
Schmitt-Trigger |
Output type |
Push-Pull |
Features |
Over-voltage tolerant inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
TSSOP (PW)-16-32 mm² 5 x 6.4

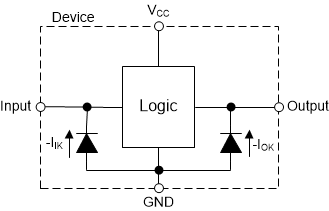

The SN74LVC2G100 is a dual, sequential, configurable multiple function device with Schmitt Trigger inputs. Sixteen patterns of a 4-bit input determines the output state. The output state serves as the input to a D-Flip Flop, which is transferred to the Q output on the positive going CLK edge. The user can choose the logic functions MUX, AND, OR, NAND, NOR, inverter, and non-inverter.
