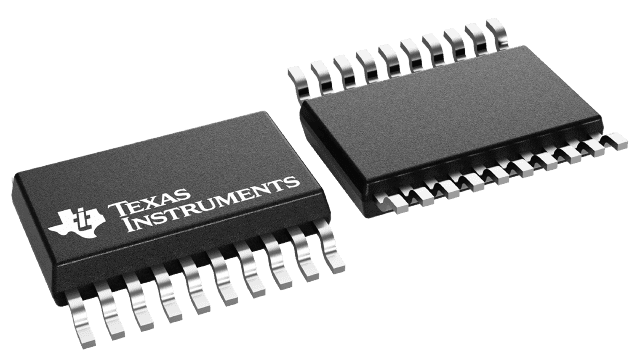

Texas Instruments TPLD2001 Product Info

Parameters

Features	In-system programming, PWM, Pattern generator, Temp. Sensor
Number of GPIOs	18
Supply voltage (min) (V)	1.71
Supply voltage (max) (V)	5.5
LUTs	20
Analog comparators	8
Interface type	General purpose, SPI, I2C
Digital flip-flops	19
State machine	8-state
PWM (Ch)	4
Shift registers	4
Counters	16-bit / 2, 8-bit / 8
Number of oscillators	3
Rating	Catalog
Operating temperature range (°C)	-40 to 125

Package

UQFN (RJY)-20-6 mm² 3 x 2

Features

Operating characteristics
- Extended temperature range: -40°C to 125°C
- Wide supply voltage range: 1.71V to 5.5V

Configurable macro-cells
- 2-, 3-, and 4-bit lookup tables (LUT)
- D-type flip-flops and latches with and without reset/set option
- 8-bit shift register
- 16-bit pattern generator
- Counters and delay generators
- PWM generators
- Programmable deglitch filter or edge detector
- Discrete analog comparators
- Multi-channel sampling analog comparator with multi-voltage reference select
- Voltage reference and Analog temperature sensor
- Analog multiplexers
- Oscillators

Flexible digital I/O features
- All digital signals can be routed to any GPIO
- Digital input modes: digital in with and without Schmitt-trigger, low-voltage digital in
- Digital output modes: push-pull, open-drain NMOS, tri-state

Development tools
- TPLD2001 evaluation module
- TPLD programmer
- InterConnect Studio

In-line programming capable

Operating characteristics
- Extended temperature range: -40°C to 125°C
- Wide supply voltage range: 1.71V to 5.5V

Configurable macro-cells
- 2-, 3-, and 4-bit lookup tables (LUT)
- D-type flip-flops and latches with and without reset/set option
- 8-bit shift register
- 16-bit pattern generator
- Counters and delay generators
- PWM generators
- Programmable deglitch filter or edge detector
- Discrete analog comparators
- Multi-channel sampling analog comparator with multi-voltage reference select
- Voltage reference and Analog temperature sensor
- Analog multiplexers
- Oscillators

Flexible digital I/O features
- All digital signals can be routed to any GPIO
- Digital input modes: digital in with and without Schmitt-trigger, low-voltage digital in
- Digital output modes: push-pull, open-drain NMOS, tri-state

Development tools
- TPLD2001 evaluation module
- TPLD programmer
- InterConnect Studio

In-line programming capable

Description

The TPLD2001 is part of the TI Programmable Logic Device (TPLD) family of devices that feature versatile programmable logic ICs with combinational logic, sequential logic, and analog blocks. TPLD provides an integrated, compact, low power solution to implement common system functions, such as timing delays, voltage monitors, system resets, power sequencers, I/O expanders, and more. This cost-optimized device offers a rich set of functionality in a small form factor, supports an extended temperature range from -40°C to 125°C, and operates with supply voltages ranging from 1.71V to 5.5V.

System designers can create circuits and configure the macro-cells, I/O pins, and interconnections by temporarily emulating the non-volatile memory or by permanently programming the one-time programmable (OTP) via InterConnect Studio. The TPLD2001 is supported by an extensive hardware and software ecosystem with application notes, reference designs and design examples. Visit ti.com for more information and access to design tools.

The TPLD2001 is part of the TI Programmable Logic Device (TPLD) family of devices that feature versatile programmable logic ICs with combinational logic, sequential logic, and analog blocks. TPLD provides an integrated, compact, low power solution to implement common system functions, such as timing delays, voltage monitors, system resets, power sequencers, I/O expanders, and more. This cost-optimized device offers a rich set of functionality in a small form factor, supports an extended temperature range from -40°C to 125°C, and operates with supply voltages ranging from 1.71V to 5.5V.

System designers can create circuits and configure the macro-cells, I/O pins, and interconnections by temporarily emulating the non-volatile memory or by permanently programming the one-time programmable (OTP) via InterConnect Studio. The TPLD2001 is supported by an extensive hardware and software ecosystem with application notes, reference designs and design examples. Visit ti.com for more information and access to design tools.
