DLPA3082

ACTIVE

Texas Instruments DLPA3082 Product Info

1 April 2026 0

Component type	PMIC/LED Driver
Chipset family	DLP472TP
Operating temperature range (°C)	0 to 70
Rating	Catalog

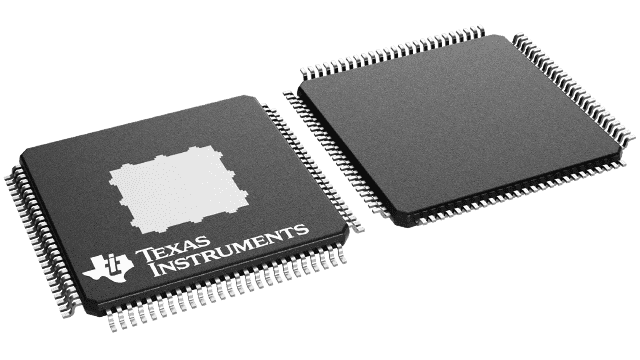

HTQFP (PFD)-100-256 mm² 16 x 16

Generation of DMD high voltage supplies
Two high-efficiency buck converters to generate the DLPC84xx and DMD supply
One high-efficiency, 8-bit programmable buck converter for fan driver application or general power supply. General purpose buck2 (PWR6) is currently supported.
Two LDOs supplying auxiliary voltages
Analog MUX for measuring internal and external nodes such as a thermistor and reference levels
Monitoring/protections: thermal shutdown, hot die, and undervoltage lockout (UVLO)

Generation of DMD high voltage supplies
Two high-efficiency buck converters to generate the DLPC84xx and DMD supply
One high-efficiency, 8-bit programmable buck converter for fan driver application or general power supply. General purpose buck2 (PWR6) is currently supported.
Two LDOs supplying auxiliary voltages
Analog MUX for measuring internal and external nodes such as a thermistor and reference levels
Monitoring/protections: thermal shutdown, hot die, and undervoltage lockout (UVLO)
