SN74LVC1G09B-Q1

ACTIVE

Texas Instruments SN74LVC1G09B-Q1 Product Info

1 April 2026 0

Rating	Automotive
Operating temperature range (°C)	to

SOT-23 (DBV)-5-8.12 mm² 2.9 x 2.8

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
Operating range from 1.1V to 5.5V
5.5V tolerant input pins

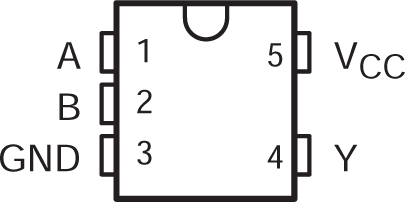

Supports standard pinouts
Latch-up performance exceeds 100mAper JESD 78

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
Operating range from 1.1V to 5.5V
5.5V tolerant input pins
Supports standard pinouts
Latch-up performance exceeds 100mAper JESD 78

The SN74LVC1G09B-Q1 device is a single 2-input positive-AND gate with an open-drain output.
