• Supports Pixel Rates Up to 165MHz
  (Including 1080p and WUXGA at 60 Hz)
• Digital Visual Interface (DVI 1.0)
  Specification Compliant⁽¹⁾
• Pin-for-Pin Compatible With TFP501 for
  Simple Upgrade Path to HDCP²
• True-Color, 24 Bit/Pixel, 16.7M Colors at
  1 or 2-Pixels per Clock
• Laser Trimmed (50 Ω) Input Stage for
  Optimum Fixed Impedance Matching
• Skew Tolerant up to One Pixel Clock Cycle
  (High Clock and Data Jitter Tolerance)
• 4x Over-Sampling for Reduced Bit-Error Rates and
  Better Performance Over Longer Cables
• Reduced Power Consumption—1.8-V Core
  Operation With 3.3 V I/Os and Supplies³
• Reduced Ground Bounce Using Time Staggered Pixel Outputs
• Lowest Noise and Best Power Dissipation

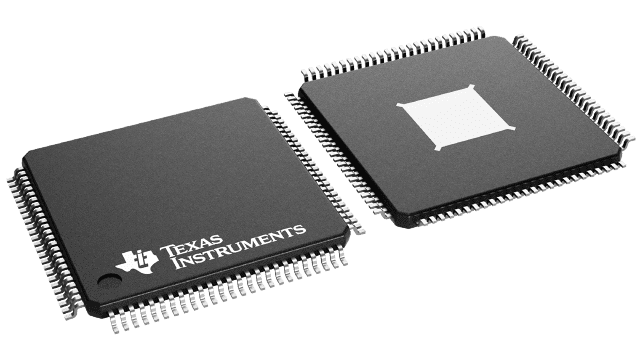

  Using PowerPAD™ Packaging
• Advanced Technology Using TI 0.18-µm
  EPIC-5™ CMOS Process
• Supports Hot Plug Detection

⁽¹⁾ The Digital Visual Interface Specification (DVI) is an industry standard developed by the Digital Display Working Group (DDWG) for high-speed digital connection to digital displays. The TFP403 is compliant with the DVI Specification Rev. 1.0.
² High-bandwidth digital content protection (HDCP) is the system used for protecting DVI outputs from being copied. The TFP501 is TI’s DVI receiver with HDCP functionality.
³ The TFP403 has an internal voltage regulator that provides the 1.8-V core power supply from the externally supplied 3.3-V supplies.
PanelBus, PowerPAD, and EPIC-5 are trademarks of Texas Instruments.
