SN74LVC125A-Q1
  • SN74LVC125A-Q1
  • SN74LVC125A-Q1
  • SN74LVC125A-Q1
  • SN74LVC125A-Q1
  • SN74LVC125A-Q1
  • SN74LVC125A-Q1

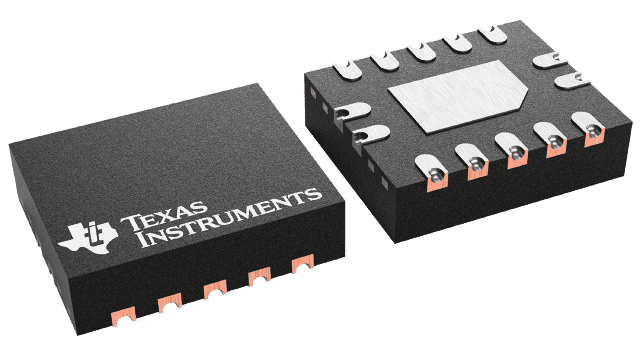

SN74LVC125A-Q1

ACTIVE

Automotive four-channel 1.65V-to-3.6V buffers with 3-state outputs

Texas Instruments SN74LVC125A-Q1 Product Info

1 April 2026 3

Parameters

Technology family

LVC

Supply voltage (min) (V)

1.65

Supply voltage (max) (V)

3.6

Number of channels

4

IOL (max) (mA)

24

Supply current (max) (µA)

20

IOH (max) (mA)

-24

Input type

Standard CMOS

Output type

3-State

Features

Balanced outputs, Over-voltage tolerant inputs, Very high speed (tpd 5-10ns)

Rating

Automotive

Operating temperature range (°C)

-40 to 125

Package

SOIC (D)-14-51.9 mm² 8.65 x 6

Features

  • Qualified for automotive applications
  • Operates from 1.65V to 3.6V
  • Specified from –40°C to 125°C
  • Inputs accept voltages to 5.5V
  • Max tpd of 4.8ns at 3.3V
  • Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
  • Typical VOHV (output VOH undershoot) >2V at VCC = 3.3V, TA = 25°C
  • Latch-up performance exceeds 250mA per JESD 17
  • Qualified for automotive applications
  • Operates from 1.65V to 3.6V
  • Specified from –40°C to 125°C
  • Inputs accept voltages to 5.5V
  • Max tpd of 4.8ns at 3.3V
  • Typical VOLP (output ground bounce) <0.8V at VCC = 3.3V, TA = 25°C
  • Typical VOHV (output VOH undershoot) >2V at VCC = 3.3V, TA = 25°C
  • Latch-up performance exceeds 250mA per JESD 17

Description

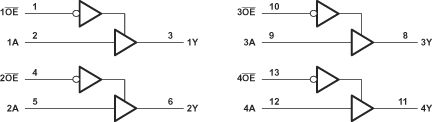

This quadruple bus buffer gate is designed for 1.65V to 3.6V VCC operation.
