0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
3 |
Rail-to-rail |
In to V- |
GBW (typ) (MHz) |
1.2 |
Slew rate (typ) (V/µs) |
0.5 |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
0.3 |
Vn at 1 kHz (typ) (nV√Hz) |
40 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
3.5 |
Features |
Cost Optimized, EMI Hardened, Standard Amps |
Input bias current (max) (pA) |
35000 |
CMRR (typ) (dB) |
94 |
Iout (typ) (A) |
0.04 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.5 |
Output swing headroom (to negative supply) (typ) (V) |
0.005 |
Output swing headroom (to positive supply) (typ) (V) |
-1.4 |
SOIC (D)-8-29.4 mm² 4.9 x 6

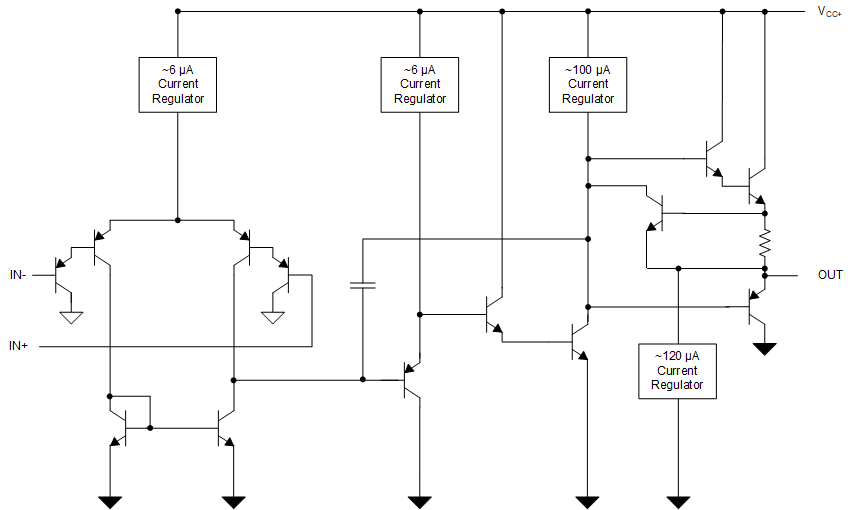

The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and LM2904, which include two high-voltage (36V) op amps. These devices provide outstanding value for cost-sensitive applications, with features including low offset (300µV, typical), common-mode input range to ground, and high differential input voltage capability.
The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage maximum of 3mV (2mV maximum for LM358BA and LM2904BA), and lower quiescent current of 300µA per amplifier (typical). High ESD (2kV, HBM) and integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging applications.
The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages including SOIC, TSSOP, and VSSOP.
