0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
40 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Rail-to-rail |
In to V-, Out |
GBW (typ) (MHz) |
10.6 |
Slew rate (typ) (V/µs) |
25 |
Vos (offset voltage at 25°C) (max) (mV) |
1.7 |
Iq per channel (typ) (mA) |
2.6 |
Vn at 1 kHz (typ) (nV√Hz) |
8.5 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
Offset drift (typ) (µV/°C) |
1.25 |
Features |
Cost Optimized, EMI Hardened |
CMRR (typ) (dB) |
110 |
Iout (typ) (A) |
0.06 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
0 |
Input common mode headroom (to positive supply) (typ) (V) |
-2 |
Output swing headroom (to negative supply) (typ) (V) |
0.06 |
Output swing headroom (to positive supply) (typ) (V) |
-0.06 |
SOIC (D)-8-29.4 mm² 4.9 x 6

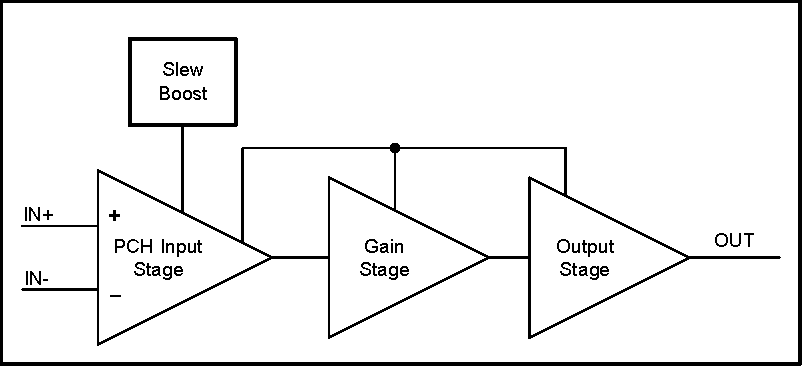

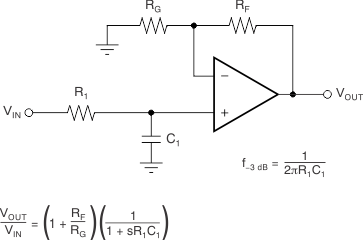

The TLV936x-Q1 family (TLV9361-Q1, TLV9362-Q1, and TLV9364-Q1) is a family of AEC-Q100 automotive qualified, 40V cost-optimized operational amplifiers.
These devices offer strong DC and AC specifications, including rail-to-rail output, low input voltage noise density (6 nV/√Hz), low offset (±400µV, typical), low offset drift (±1.25µV/°C, typical), and 10.6MHz bandwidth.
Features such as EMIRR filtering, high output current (±60mA), and high slew rate (25V/µs) make the TLV936x-Q1 a robust operational amplifier for high-voltage, cost-sensitive applications.
The TLV936x-Q1 family of op amps is available in standard packages and is specified from –40°C to 125°C.
