0
ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
15.5 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.35 |
Offset drift (typ) (µV/°C) |
1 |

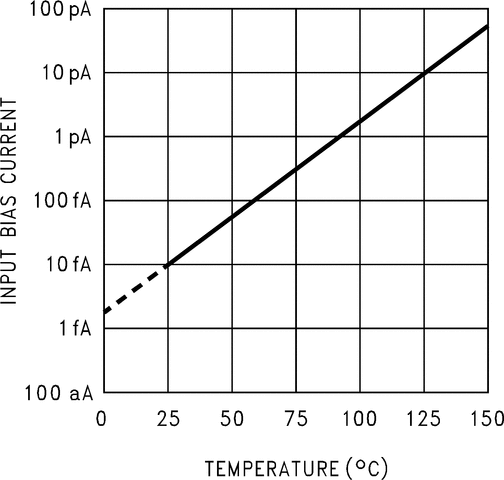

Input bias current (max) (pA) |
0.1 |
GBW (typ) (MHz) |
1.3 |
Slew rate (typ) (V/µs) |
1.5 |
Rail-to-rail |
In to V-, Out |
Iq per channel (typ) (mA) |
0.45 |
Vn at 1 kHz (typ) (nV√Hz) |
22 |
CMRR (typ) (dB) |
85 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.021 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.4 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.9 |
Output swing headroom (to negative supply) (typ) (V) |
0.1 |
Output swing headroom (to positive supply) (typ) (V) |
-0.13 |
THD + N at 1 kHz (typ) (%) |
0.01 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43
The LMC6081, LMC6082, and LMC6084 (LMC608x) are precision, low-offset-voltage operational amplifiers (op amps), capable of single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common-mode voltage range that includes ground. These features, plus the low offset voltage, make the LMC608x an excellent choice for precision circuit applications.
Other applications using the LMC608x include precision full-wave rectifiers, integrators, references, and sample-and-hold circuits.
For designs with more critical power demands, see the LMC6062 precision, dual, micropower operational amplifier.
