ACTIVE
Number of channels |
8 |
Technology family |
LV-A |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Input type |
Standard CMOS |
Output type |
3-State |
Clock frequency (max) (MHz) |
70 |
IOL (max) (mA) |
16 |
IOH (max) (mA) |
-16 |
Supply current (max) (µA) |
20 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs, Partial power down (Ioff) |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Automotive |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

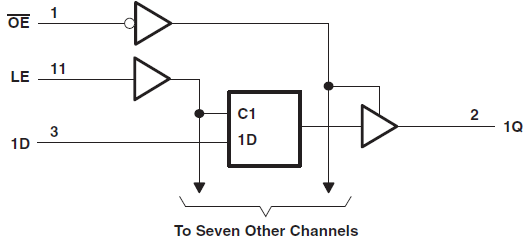

The SN74LV373A-Q1 device is an octal transparent D-type latch designed for 2 V to 5.5 V V CC operation. While the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs.
