LMZM33602
  • LMZM33602
  • LMZM33602

LMZM33602

ACTIVE

4V to 36V, 2A Step-Down DC/DC Power Module in Compact 7x9x4mm QFN Package

Texas Instruments LMZM33602 Product Info

1 April 2026 3

Parameters

Rating

Catalog

Topology

Buck, Inverting Buck-Boost, Synchronous Buck

Iout (max) (A)

2

Vin (max) (V)

36

Vin (min) (V)

4

Vout (max) (V)

18

Vout (min) (V)

1

Features

EMI Tested, Enable, Frequency synchronization, Power good

Operating temperature range (°C)

-40 to 105

Type

Module

Duty cycle (max) (%)

90

Switching frequency (min) (kHz)

200

Switching frequency (max) (kHz)

1200

Package

B3QFN (RLR)-18-63 mm² 9 x 7

Features

  • Complete integrated power solution
    • As few as four external components
    • Minimum solution size < 100 mm2
  • 9-mm × 7-mm × 4-mm QFN package
    • All pins accessible from package perimeter
    • Pin compatible with 3-A LMZM33603
  • Input voltage range: 4 V to 36 V
  • Output voltage range: 1 V to 18 V
  • Efficiencies up to 95%
  • Adjustable switching frequency (200 kHz to 1.2 MHz)
  • Allows synchronization to an external clock
  • Power-good output
  • Meets EN55011 class B radiated EMI standards
  • Operating IC junction range: –40°C to +125°C
  • Operating ambient range: –40°C to +105°C
  • Create a custom design using the LMZM33602 with the WEBENCH Power Designer
  • Complete integrated power solution
    • As few as four external components
    • Minimum solution size < 100 mm2
  • 9-mm × 7-mm × 4-mm QFN package
    • All pins accessible from package perimeter
    • Pin compatible with 3-A LMZM33603
  • Input voltage range: 4 V to 36 V
  • Output voltage range: 1 V to 18 V
  • Efficiencies up to 95%
  • Adjustable switching frequency (200 kHz to 1.2 MHz)
  • Allows synchronization to an external clock
  • Power-good output
  • Meets EN55011 class B radiated EMI standards
  • Operating IC junction range: –40°C to +125°C
  • Operating ambient range: –40°C to +105°C
  • Create a custom design using the LMZM33602 with the WEBENCH Power Designer

Description

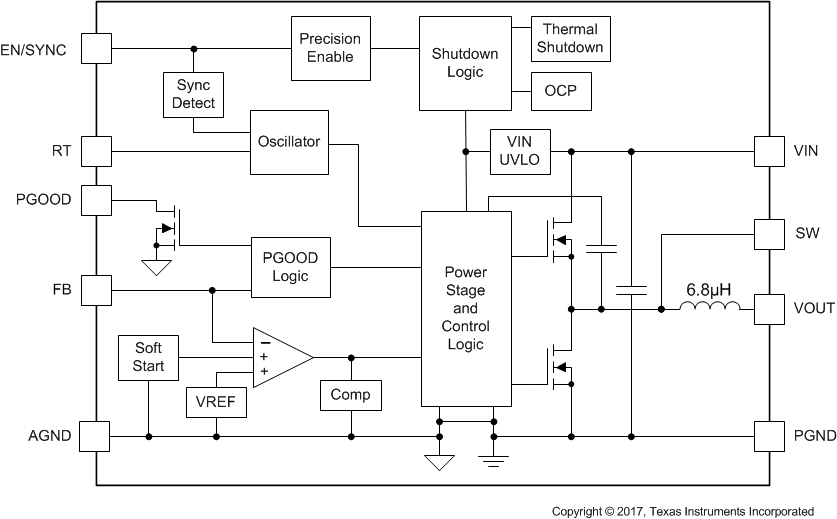

The LMZM33602 power module is an easy-to-use integrated power solution that combines a 2-A, step-down, DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low-profile package. This power solution requires as few as four external components and eliminates the loop compensation and magnetics part selection from the design process.

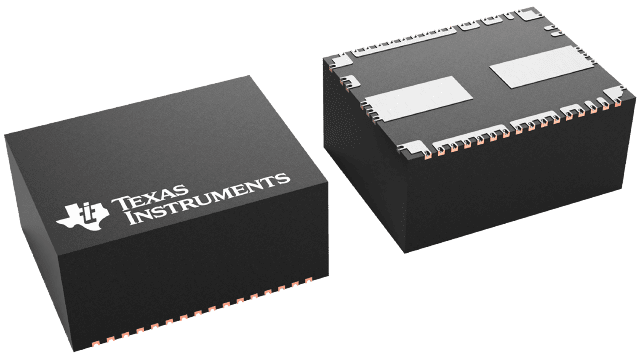

The 9-mm × 7-mm × 4-mm, 18-pin QFN package is easy to solder onto a printed circuit board and allows a compact, low-profile, point-of-load design. The full feature set, including power good, programmable UVLO, prebias start-up, overcurrent and overtemperature protections, make the LMZM33602 an excellent device for powering a wide range of applications.
