0
ACTIVE
Technology family |
HCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
Inputs per channel |
2 |
IOL (max) (mA) |
4 |
IOH (max) (mA) |
-4 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Features |
High speed (tpd 10- 50ns) |
Data rate (max) (Mbps) |
25 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
PDIP (N)-14-181.42 mm² 19.3 x 9.4
SN74HCT00

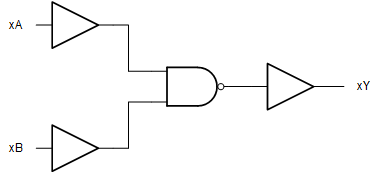

SN74HCT00:4-ch, 2-input, 4.5-V to 5.5-V NAND gates with TTL-compatible CMOS inputs.Package:PDIP (N)-14-181.42 mm² 19.3 x 9.4
