ADC31RF80
  • ADC31RF80
  • ADC31RF80
  • ADC31RF80

ADC31RF80

ACTIVE

14-Bit, 3-GSPS, RF-Sampling Wideband Receiver and Feedback IC

Texas Instruments ADC31RF80 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

3000

Resolution (Bits)

14

Number of input channels

1

Interface type

JESD204B

Analog input BW (MHz)

3200

Features

Ultra High Speed

Rating

Catalog

Peak-to-peak input voltage range (V)

1.35

Power consumption (typ) (mW)

3200

Architecture

Pipeline

SNR (dB)

61.4

ENOB (Bits)

9.8

SFDR (dB)

71

Operating temperature range (°C)

-40 to 85

Input buffer

Yes

Package

VQFNP (RMP)-72-100 mm² 10 x 10

Features

  • 14-Bit, 3-GSPS ADC
  • Noise Floor: –155 dBFS/Hz
  • RF Input Supports Up To 4.0 GHz
  • Aperture Jitter: 90 fS
  • Spectral Performance (fIN = 900 MHz, –2 dBFS):
    • SNR: 61.4 dBFS
    • SFDR: 71-dBc HD2, HD3
    • SFDR: 76-dBc Worst Spur
  • Spectral Performance (fIN = 1.85 GHz, –2 dBFS):
    • SNR: 58.5 dBFS
    • SFDR: 65-dBc HD2, HD3
    • SFDR: 75-dBc Worst Spur
  • On-Chip Digital Down-Converters:
    • Up to 2 DDCs (Dual-Band Mode)
    • Up to 3 Independent NCOs per DDC
  • On-Chip Input Clamp for Overvoltage Protection
  • Programmable On-Chip Power Detectors With Alarm Pins for AGC Support
  • On-Chip Dither
  • On-Chip Input Termination
  • Input Full-Scale: 1.35 VPP
  • Support for Multi-Chip Synchronization
  • JESD204B Interface:
    • Subclass 1-Based Deterministic Latency
    • 4 Lanes Support at 12.5 Gbps
  • Total Power Dissipation: 3.2 W at 3.0 GSPS

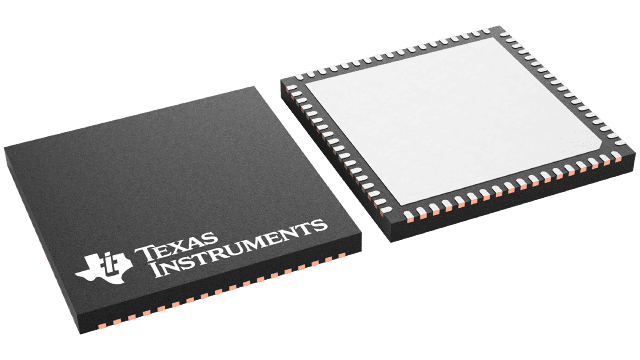

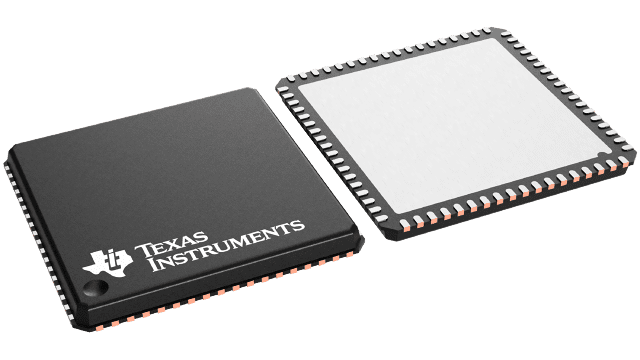

  • 72-Pin VQFN Package (10 mm × 10 mm)
  • 14-Bit, 3-GSPS ADC
  • Noise Floor: –155 dBFS/Hz
  • RF Input Supports Up To 4.0 GHz
  • Aperture Jitter: 90 fS
  • Spectral Performance (fIN = 900 MHz, –2 dBFS):
    • SNR: 61.4 dBFS
    • SFDR: 71-dBc HD2, HD3
    • SFDR: 76-dBc Worst Spur
  • Spectral Performance (fIN = 1.85 GHz, –2 dBFS):
    • SNR: 58.5 dBFS
    • SFDR: 65-dBc HD2, HD3
    • SFDR: 75-dBc Worst Spur
  • On-Chip Digital Down-Converters:
    • Up to 2 DDCs (Dual-Band Mode)
    • Up to 3 Independent NCOs per DDC
  • On-Chip Input Clamp for Overvoltage Protection
  • Programmable On-Chip Power Detectors With Alarm Pins for AGC Support
  • On-Chip Dither
  • On-Chip Input Termination
  • Input Full-Scale: 1.35 VPP
  • Support for Multi-Chip Synchronization
  • JESD204B Interface:
    • Subclass 1-Based Deterministic Latency
    • 4 Lanes Support at 12.5 Gbps
  • Total Power Dissipation: 3.2 W at 3.0 GSPS
  • 72-Pin VQFN Package (10 mm × 10 mm)

Description

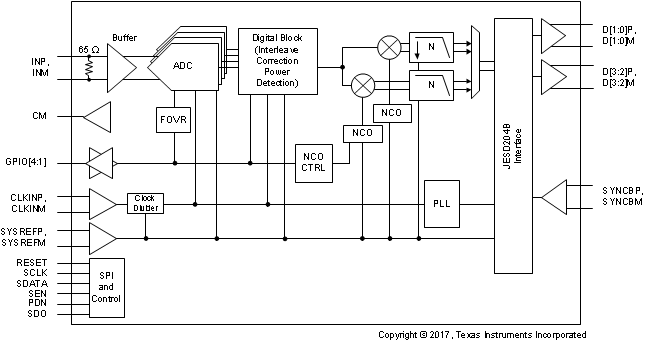

The ADC31RF80 device is a 14-bit, 3-GSPS, single-channel telecom receiver and feedback device that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC31RF80 delivers a noise spectral density of –155 dBFS/Hz as well as dynamic range over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.

The ADC31RF80 comes with a dual-band, digital down-converter (DDC) with up to three independent, 16-bit numerically-controlled oscillators (NCOs) per DDC for phase-coherent frequency hopping. Additionally, the ADC is equipped with front-end peak and RMS power detectors and alarm functions to support external automatic gain control (AGC) algorithms.

The ADC31RF80 supports the JESD204B serial interface with subclass 1-based deterministic latency using data rates up to 12.5 Gbps with up to four lanes. The device is offered in a 72-pin VQFN package (10 mm × 10 mm) and supports the industrial temperature range (–40°C to +85°C).



The ADC31RF80 device is a 14-bit, 3-GSPS, single-channel telecom receiver and feedback device that supports RF sampling with input frequencies up to 4 GHz and beyond. Designed for high signal-to-noise ratio (SNR), the ADC31RF80 delivers a noise spectral density of –155 dBFS/Hz as well as dynamic range over a large input frequency range. The buffered analog input with on-chip termination provides uniform input impedance across a wide frequency range and minimizes sample-and-hold glitch energy.

The ADC31RF80 comes with a dual-band, digital down-converter (DDC) with up to three independent, 16-bit numerically-controlled oscillators (NCOs) per DDC for phase-coherent frequency hopping. Additionally, the ADC is equipped with front-end peak and RMS power detectors and alarm functions to support external automatic gain control (AGC) algorithms.

The ADC31RF80 supports the JESD204B serial interface with subclass 1-based deterministic latency using data rates up to 12.5 Gbps with up to four lanes. The device is offered in a 72-pin VQFN package (10 mm × 10 mm) and supports the industrial temperature range (–40°C to +85°C).
