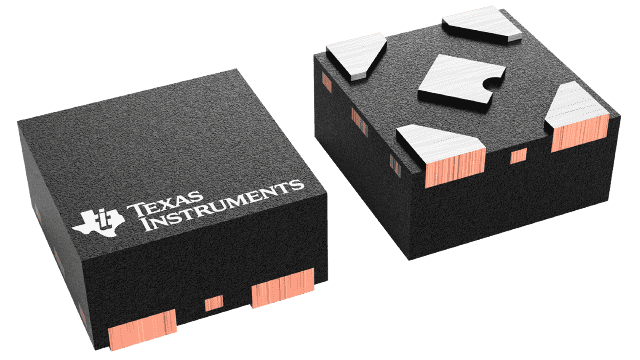

SN74AUP1G08

ACTIVE

1-ch, 2-input 0.8-V to 3.6-V low power (< 1uA) AND gate

Texas Instruments SN74AUP1G08 Product Info

1 April 2026 0

Parameters

Technology family

AUP

Supply voltage (min) (V)

0.8

Supply voltage (max) (V)

3.6

Number of channels

1

Inputs per channel

2

IOL (max) (mA)

4

IOH (max) (mA)

-4

Input type

Standard CMOS

Output type

Push-Pull

Features

Over-voltage tolerant inputs, Partial power down (Ioff), Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

100

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

DSBGA (YFP)-6-1.4000000000000001 mm² 1 x 1.4000000000000001

Features

  • Available in the Ultra Small 0.64mm2 Package (DPW) With 0.5mm Pitch
  • Low Static-Power Consumption: ICC = 0.9µA Maximum
  • Low Dynamic-Power Consumption: Cpd = 4.3pF Typical at 3.3V
  • Low Input Capacitance: Ci = 1.5pF Typical
  • Low Noise: Overshoot and Undershoot <10% of VCC
  • Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
  • Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3V)
  • Wide Operating VCC Range of 0.8V to 3.6V
  • Optimized for 3.3V Operation
  • 3.6V I/O Tolerant to Support Mixed-Mode Signal Operation
  • tpd = 4.3ns Maximum at 3.3V
  • Suitable for Point-to-Point Applications
  • Latch-Up Performance Exceeds 100mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 2000V Human-Body Model (A114-B, Class II)
    • 1000V Charged-Device Model (C101)
  • Available in the Ultra Small 0.64mm2 Package (DPW) With 0.5mm Pitch
  • Low Static-Power Consumption: ICC = 0.9µA Maximum
  • Low Dynamic-Power Consumption: Cpd = 4.3pF Typical at 3.3V
  • Low Input Capacitance: Ci = 1.5pF Typical
  • Low Noise: Overshoot and Undershoot <10% of VCC
  • Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
  • Schmitt-Trigger Action Allows Slow Input Transition and Better Switching Noise Immunity at the Input (Vhys = 250 mV Typical at 3.3V)
  • Wide Operating VCC Range of 0.8V to 3.6V
  • Optimized for 3.3V Operation
  • 3.6V I/O Tolerant to Support Mixed-Mode Signal Operation
  • tpd = 4.3ns Maximum at 3.3V
  • Suitable for Point-to-Point Applications
  • Latch-Up Performance Exceeds 100mA Per JESD 78, Class II
  • ESD Performance Tested Per JESD 22
    • 2000V Human-Body Model (A114-B, Class II)
    • 1000V Charged-Device Model (C101)

Description

This single 2-input positive-AND gate is designed for 0.8V to 3.6V VCC operation and performs the Boolean function Y = A • B or Y = /A + /B in positive logic.

This single 2-input positive-AND gate is designed for 0.8V to 3.6V VCC operation and performs the Boolean function Y = A • B or Y = /A + /B in positive logic.
