Texas Instruments SN74AUC1G02 Product Info

Parameters

Technology family	AUC
Number of channels	1
Supply voltage (min) (V)	0.8
Supply voltage (max) (V)	2.7
Inputs per channel	2
IOL (max) (mA)	9
IOH (max) (mA)	-9
Output type	Push-Pull
Input type	Standard CMOS
Features	Over-voltage tolerant Inputs, Partial power down (Ioff), Ultra high speed (tpd <5ns)
Data rate (max) (Mbps)	250
Rating	Catalog
Operating temperature range (°C)	-40 to 85

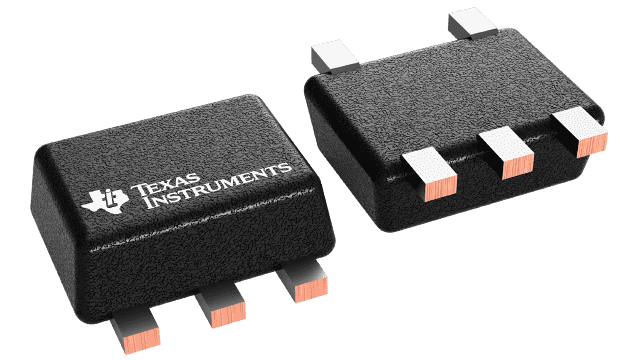

Package

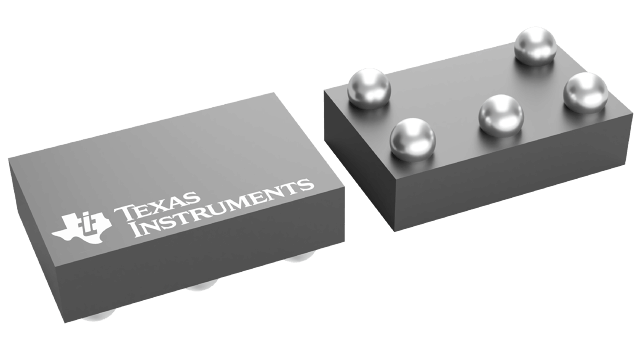

DSBGA (YZP)-5-2.1875 mm² 1.75 x 1.25

Features

Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 2.4 ns at 1.8 V
Low Power Consumption, 10-µA Max I_CC
±8-mA Output Drive at 1.8 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree is a trademark of Texas Instruments.

Available in the Texas Instruments NanoFree™ Package
Optimized for 1.8-V Operation and Is 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
I_off Supports Partial-Power-Down Mode Operation
Sub-1-V Operable
Max t_pd of 2.4 ns at 1.8 V
Low Power Consumption, 10-µA Max I_CC
±8-mA Output Drive at 1.8 V
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)

NanoFree is a trademark of Texas Instruments.

Description

This single 2-input positive-NOR gate is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G02 performs the Boolean function Y = A + B or Y = A B in positive logic.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, please refer to the TI application report, Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.

This single 2-input positive-NOR gate is operational at 0.8-V to 2.7-V V_CC, but is designed specifically for 1.65-V to 1.95-V V_CC operation.

The SN74AUC1G02 performs the Boolean function Y = A + B or Y = A B in positive logic.

NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.

This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

For more information about AUC Little Logic devices, please refer to the TI application report, Applications of Texas Instruments AUC Sub-1-V Little Logic Devices, literature number SCEA027.
