ACTIVE
Audio input type |
Analog Input |
Architecture |
Class-AB |
Speaker channels (max) |
Mono |
Control interface |
Hardware |
Output power (W) |
1.7 |
Power stage supply (max) (V) |
5.5 |
Power stage supply (min) (V) |
2.5 |
THD + N at 1 kHz (%) |
0.02 |
Load (min) (Ω) |
8 |
Analog supply voltage (min) (V) |
2.5 |
Analog supply voltage (max) (V) |
5.5 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

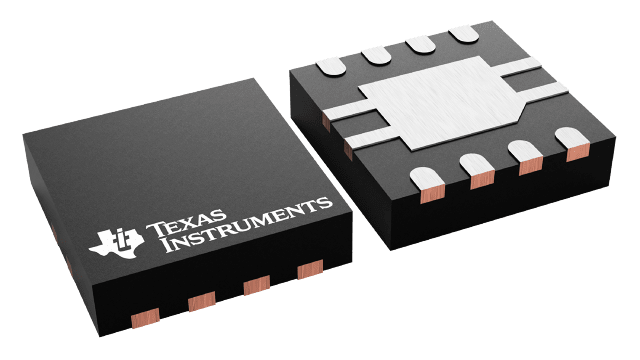

VSON (DRB)-8-9 mm² 3 x 3
The TPA6204A1 device (sometimes referred to as TPA6204) is a 1.7-W mono fully-differential amplifier designed to drive a speaker with at least 8-Ω impedance while consuming only 20 mm2 total printed-circuit board (PCB) area in most applications. The device operates from 2.5 V to 5.5 V, drawing only 4 mA of quiescent supply current. The TPA6204A1 (TPA6204) is available in the space-saving 3 mm × 3 mm SON (DRB) package.
The TPA6204A1 (TPA6204) is ideal for PDA or smartphone applications due to features such as −80-dB supply voltage rejection from 20 Hz to 2 kHz, improved RF rectification immunity, small PCB area, and a fast start-up with minimal pop.
