0
ACTIVE
Number of channels |
8 |
Technology family |
AHC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Input type |
Standard CMOS |
Output type |
3-State |
Clock frequency (max) (MHz) |
110 |
IOL (max) (mA) |
8 |
IOH (max) (mA) |
-8 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Over-voltage tolerant inputs |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Catalog |

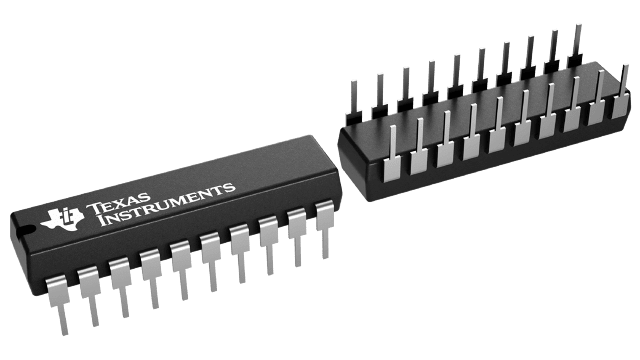

PDIP (N)-20-228.702 mm² 24.33 x 9.4
The SNx4AHC574 devices are octal edge-triggered D-type flip-flops that feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. These devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
