ACTIVE
Rating |
Catalog |
Topology |
Buck |
Iout (max) (A) |
1 |
Vin (max) (V) |
40 |
Vin (min) (V) |
4 |
Vout (max) (V) |
30 |
Vout (min) (V) |
0.8 |
Features |
Enable, Fixed soft start, Light-load efficiency, Overcurrent protection, Pre-bias startup, UVLO Fixed |
Control mode |
current mode |
Operating temperature range (°C) |
-40 to 125 |
Iq (typ) (A) |
0.00003 |
Duty cycle (max) (%) |
96 |
SOT-23-THN (DDC)-6-8.12 mm² 2.9 x 2.8

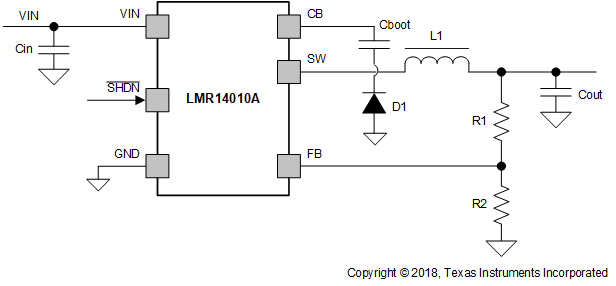

The LMR14010A is a PWM DC-to-DC buck (step-down) regulator. With a wide input range from 4V to 40V, the device is deigned for a wide range of applications from industrial to automotive. An ultra-low 1µA shutdown current prolongs battery life. Operating frequency is fixed at 0.7MHz, allowing the use of small external components while minimizing output ripple voltage. Soft-start and compensation circuits are implemented internally, limiting the number of external components.
The LMR14010A is optimized for up to 1A load current. The device has a 0.765V nominal feedback voltage.
The device has built-in protection features such as pulse-by-pulse current limit, thermal sensing and shutdown due to excessive power dissipation. The LMR14010A is available in a low profile TSOT-6L package (2.9mm × 1.6mm × 0.85mm).
