SN74AHC573

ACTIVE

Octal Transparent D-Type Latches With 3-State Outputs

Texas Instruments SN74AHC573 Product Info

1 April 2026 0

Parameters

Number of channels

8

Technology family

AHC

Supply voltage (min) (V)

2

Supply voltage (max) (V)

5.5

Input type

Standard CMOS

Output type

3-State

Clock frequency (max) (MHz)

110

IOL (max) (mA)

8

IOH (max) (mA)

-8

Supply current (max) (µA)

40

Features

Balanced outputs, Flow-through pinout, High speed (tpd 10-50ns), Over-voltage tolerant inputs

Operating temperature range (°C)

-40 to 125

Rating

Catalog

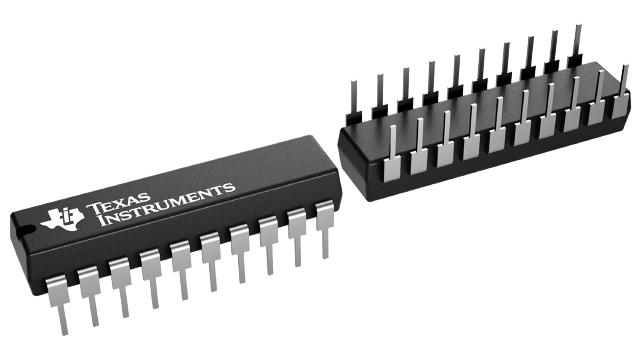

Package

PDIP (N)-20-228.702 mm² 24.33 x 9.4

Features

  • Operating range 2V to 5.5V VCC
  • 3-state outputs directly drive bus lines
  • Latch-up performance exceeds 250mA per JESD 17
  • On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
  • Operating range 2V to 5.5V VCC
  • 3-state outputs directly drive bus lines
  • Latch-up performance exceeds 250mA per JESD 17
  • On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.

Description

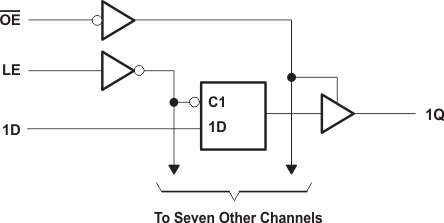

The SNx4AHC573 devices are octal transparent D-type latches designed for 2V to 5.5V VCC operation.

The SNx4AHC573 devices are octal transparent D-type latches designed for 2V to 5.5V VCC operation.
