0
ACTIVE
Number of channels |
8 |
Technology family |
ACT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Supply current (max) (µA) |
80 |
Features |
Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns) |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |
TSSOP (PW)-20-41.6 mm² 6.5 x 6.4

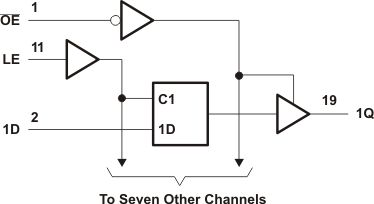

These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bus drivers, and working registers.
