Texas Instruments SN74ACT14-Q1 Product Info

Parameters

Technology family	ACT
Supply voltage (min) (V)	4.5
Supply voltage (max) (V)	5.5
Number of channels	6
IOL (max) (mA)	24
IOH (max) (mA)	-24
Supply current (max) (µA)	2
Input type	Schmitt-Trigger, TTL-Compatible CMOS
Output type	Push-Pull
Features	Balanced outputs, Input clamp diode, Very high speed (tpd 5-10ns)
Rating	Automotive
Operating temperature range (°C)	-40 to 125

TSSOP (PW)-14-32 mm² 5 x 6.4

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B

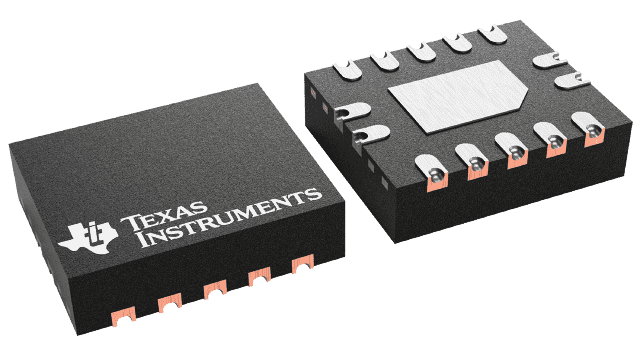

Available in wettable flank QFN package
Operating voltage range of 4.5V to 5.5V
TTL-compatible Schmitt-trigger inputs support slow and noisy input signals
Continuous ±24mA output drive at 5V
Supports up to ±75mA output drive at 5Vin short bursts
Drives 50Ω transmission lines
Fast operation with delay of 9.5ns max

AEC-Q100 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in wettable flank QFN package
Operating voltage range of 4.5V to 5.5V
TTL-compatible Schmitt-trigger inputs support slow and noisy input signals
Continuous ±24mA output drive at 5V
Supports up to ±75mA output drive at 5Vin short bursts
Drives 50Ω transmission lines
Fast operation with delay of 9.5ns max

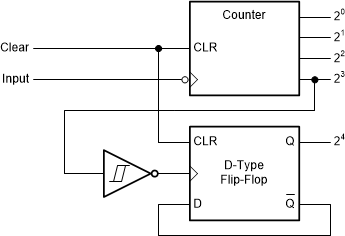

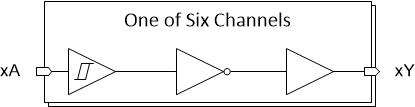

The SN74ACT14-Q1 device contains six independent inverters with TTL-compatible Schmitt-trigger inputs.
