SN74ACT125
  • SN74ACT125
  • SN74ACT125
  • SN74ACT125
  • SN74ACT125

SN74ACT125

ACTIVE

4-ch buffers with TTL compatible inputs and 3-state outputs

Texas Instruments SN74ACT125 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Operating temperature range (°C)

to

Package

TSSOP (PW)-14-32 mm² 5 x 6.4

Features

  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.7ns
  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 8.7ns

Description

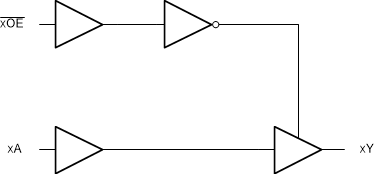

The SN74ACT125 contains four independent 3-state buffers.

The SN74ACT125 contains four independent 3-state buffers.
