LMH9126
  • LMH9126
  • LMH9126
  • LMH9126

LMH9126

ACTIVE

2.3-2.9 GHz differential to single-ended low-power amplifier with Integrated balun

Texas Instruments LMH9126 Product Info

1 April 2026 0

Parameters

Type

Active Balun

Frequency (min) (MHz)

2300

Frequency (max) (MHz)

2900

Gain (typ) (dB)

18

Noise figure (typ) (dB)

3.5

OIP3 (typ) (dBm)

35

P1dB (typ) (dBm)

18

Frequency of harmonic distortion measurement (GHz)

2.6

Supply voltage (V)

3.3

Current consumption (mA)

114

Number of channels

1

Operating temperature range (°C)

-40 to 105

Rating

Catalog

Output enable

Yes

Package

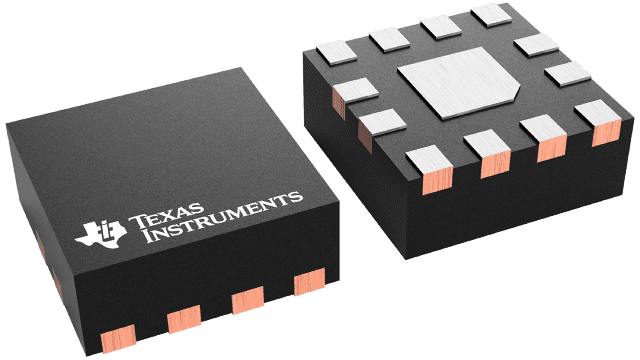

WQFN (RRL)-12-4 mm² 2 x 2

Features

  • Single-Channel, Differential Input to Single-Ended Output RF Gain Block Amplifier
  • 18-dB Typical Gain Across the Band
  • 3.5-dB Noise Figure
  • 35-dBm OIP3
  • 18-dBm Output P1dB
  • 375-mW Power Consumption on 3.3-V Single Supply
  • Up to 105°C TC Operating Temperature
  • Single-Channel, Differential Input to Single-Ended Output RF Gain Block Amplifier
  • 18-dB Typical Gain Across the Band
  • 3.5-dB Noise Figure
  • 35-dBm OIP3
  • 18-dBm Output P1dB
  • 375-mW Power Consumption on 3.3-V Single Supply
  • Up to 105°C TC Operating Temperature

Description

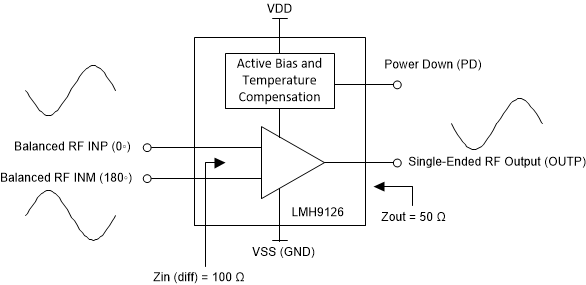

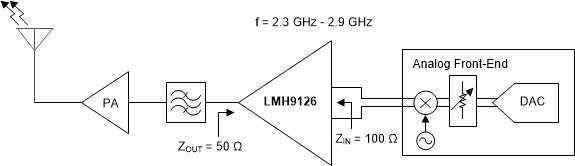

The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA.

Operating on a single 3.3-V supply, the device consumes only 375 mW of active power making it suitable for high-density 5G massive MIMO applications. Also, the device is available in a space saving 2-mm × 2-mm, 12-pin QFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. There is a 1.8-V JEDEC compliant power down pin available for fast power down and power up of the device suitable for time division duplex (TDD) systems.

The LMH9126 is high-performance, single-channel, differential input to single-ended output transmit RF gain block amplifier supporting 2.6-GHz center frequency band. The device is well suited to support requirements for the next generation 5G AAS or small cell applications while driving the input of a power amplifier (PA). The RF amplifier provides 18-dB typical gain with good linearity performance of 35-dBm output IP3, while maintaining less than 4-dB noise figure across the whole 1-dB bandwidth. The device is internally matched for 100-Ω differential input impedance providing easy interface with an RF-sampling or Zero-IF analog front-end (AFE) at the input. Also, the device is internally matched for 50-Ω single-ended output impedance required for easy interface with a post-amplifier, SAW filter, or PA.

Operating on a single 3.3-V supply, the device consumes only 375 mW of active power making it suitable for high-density 5G massive MIMO applications. Also, the device is available in a space saving 2-mm × 2-mm, 12-pin QFN package. The device is rated for an operating temperature of up to 105°C to provide a robust system design. There is a 1.8-V JEDEC compliant power down pin available for fast power down and power up of the device suitable for time division duplex (TDD) systems.
