ACTIVE
Device type |
Voltage sensing |
Output type |
Differential |
Peak-to-peak input voltage range (V) |
2 |
Isolation rating |
Reinforced |
Withstand isolation voltage (VISO) (Vrms) |
4250 |
Working isolation voltage (VIOWM) (Vrms) |
1200 |
Transient isolation voltage (VIOTM) (VPK) |
6000 |
CMTI (min) (kV/µs) |
75 |
Input offset (±) (max) (V) |
0.0002 |
Input offset drift (±) (typ) (µV/°C) |
5 |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 125 |
SO-MOD (DWE)-16-106.09 mm² 10.3 x 10.3

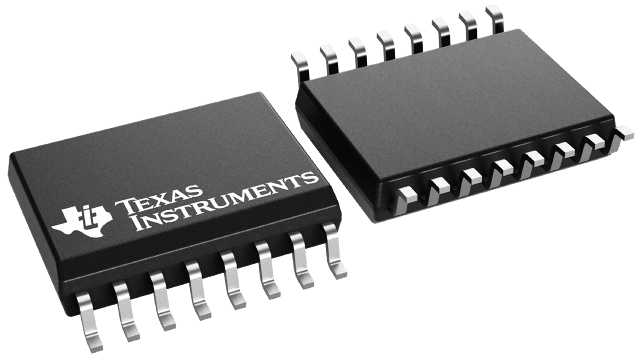

The AMC3311-Q1 is a precision, isolated amplifier with a fully integrated, isolated DC/DC converter that allows single-supply operation from the low-side of the device. The reinforced capacitive isolation barrier is highly resistant to magnetic interference, is certified according to DIN EN IEC 60747-17 (VDE 0884-17) and UL1577, and supports a working voltage of up to 1200 V RMS.
The isolation barrier separates parts of the system that operate on different common-mode voltage levels and protects the low-voltage side from voltage levels that can cause electrical damage and are potentially harmful to an operator.
The input of the AMC3311-Q1 is optimized for direct connection to high-impedance resistive dividers that are typically used for sensing high voltages. The integrated isolated DC/DC converter allows measurement of non-ground-referenced signals and makes the device a unique solution for noisy, space-constrained applications. The high DC accuracy and low temperature drift support accurate voltage monitoring and control.
The AMC3311-Q1 is offered in a wide-body, 16-pin SOIC package, and is specified over the temperature range of –40°C to +125°C.
