0
ACTIVE
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
4 |
Inputs per channel |
2 |
IOL (max) (mA) |
24 |
Input type |
Standard CMOS |
IOH (max) (mA) |
-24 |
Output type |
Push-Pull |
Features |
Very high speed (tpd 5-10ns) |
Data rate (max) (Mbps) |
100 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
PDIP (N)-14-181.42 mm² 19.3 x 9.4

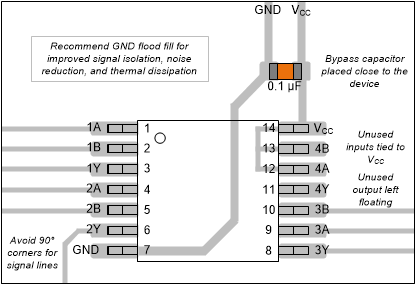

The ’AC86 devices are quadruple 2-input exclusive-OR gates. The devices perform the Boolean function Y = A ⊕ B or Y = AB + AB in positive logic.
A common application is as a true/complement element. If one of the inputs is low, the other input is reproduced in true form at the output. If one of the inputs is high, the signal on the other input is reproduced inverted at the output.
