ESD224

ACTIVE

Quad 0.5-pF, ±3.6-V, ±12-kV ESD protection diode for USB & HDMI

Texas Instruments ESD224 Product Info

1 April 2026 4

Parameters

Number of channels

4

Vrwm (V)

3.6

Bi-/uni-directional

Bi-directional

Package name

DFN2510

Peak pulse power (8/20 μs) (max) (W)

17

IO capacitance (typ) (pF)

0.5

IEC 61000-4-2 contact (±V)

12000

IEC 61000-4-5 (A)

2

Clamping voltage (V)

14

Dynamic resistance (typ)

0.5

Interface type

HDMI 2.0, USB 2.0, USB 3.0, USB Type-C

Breakdown voltage (min) (V)

5

IO leakage current (max) (nA)

10

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

USON (DQA)-10-2.5 mm² 2.5 x 1

Features

  • IEC 61000-4-2 Level 4 ESD Protection
    • ±12-kV Contact Discharge
    • ±15-kV Air Gap Discharge
  • IEC 61000-4-4 EFT Protection
    • 80 A (5/50 ns)
  • IEC 61000-4-5 Surge Protection
    • 2 A (8/20 µs)
  • IO Capacitance:
    • 0.5 pF (Typical)
  • HDMI 2.0 Compliant
  • Ultra-Low Leakage Current: 0.1 nA (Typical)
  • Ultra-Low ESD Clamping Voltage: 8 V at 16-A TLP (System Side)
  • Supports High Speed Interfaces up to 6 Gbps
  • Industrial Temperature Range: –40°C to +125°C
  • Industry Standard DQA Package
  • IEC 61000-4-2 Level 4 ESD Protection
    • ±12-kV Contact Discharge
    • ±15-kV Air Gap Discharge
  • IEC 61000-4-4 EFT Protection
    • 80 A (5/50 ns)
  • IEC 61000-4-5 Surge Protection
    • 2 A (8/20 µs)
  • IO Capacitance:
    • 0.5 pF (Typical)
  • HDMI 2.0 Compliant
  • Ultra-Low Leakage Current: 0.1 nA (Typical)
  • Ultra-Low ESD Clamping Voltage: 8 V at 16-A TLP (System Side)
  • Supports High Speed Interfaces up to 6 Gbps
  • Industrial Temperature Range: –40°C to +125°C
  • Industry Standard DQA Package

Description

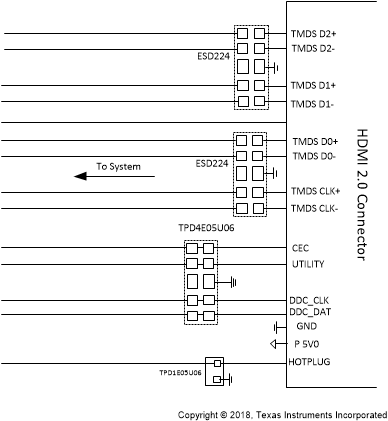

The ESD224 is a bidirectional TVS ESD protection diode array for high speed applications such as USB 3.0 and HDMI 2.0. The ESD224 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). The ESD224 employs on-chip differentially matched series elements to enhance down-stream ESD clamping performance while maintaining the signal compliance for high speed interfaces. The ultra-low clamping performance and high differential bandwidth provided by the ESD224 on-chip ESD protection network enables the device to be HDMI 2.0 compliant while providing robust protection to downstream HDMI devices.

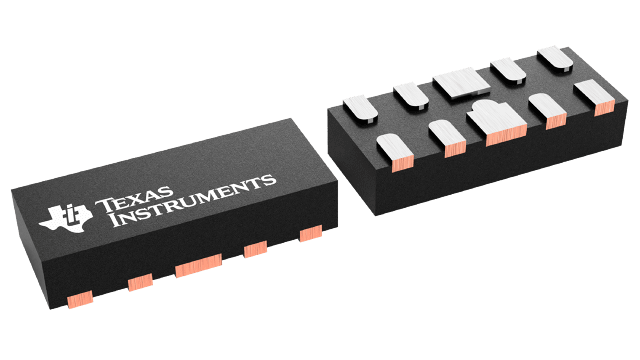

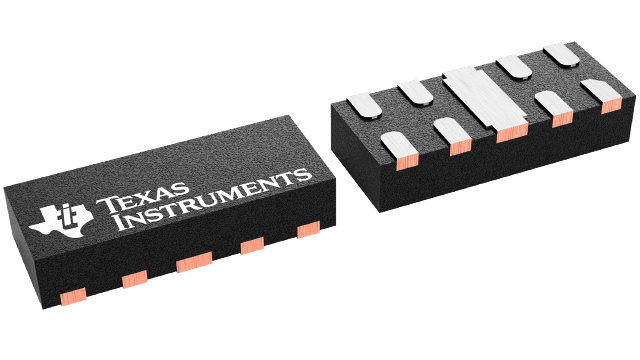

The ESD224 is offered in the industry standard USON-10 (DQA) package. The package features 0.5-mm pin pitch easing implementation and reducing design time.
