ACTIVE
Rating |
Catalog |
Number of supplies monitored |
1 |
Threshold voltage 1 (typ) (V) |
0.5, 4.55, adjustable |
Features |
Complimentary output, Manual reset capable, Wide input voltage |
Reset threshold accuracy (%) |
2 |
Iq (typ) (mA) |
1.8 |
Output driver type/reset output |
Active-high, Active-low, Open-drain |
Watchdog timer WDI (s) |
None |
Supply voltage (min) (V) |
3.5 |
Supply voltage (max) (V) |
18 |
Operating temperature range (°C) |
-40 to 85 |
PDIP (P)-8-92.5083 mm² 9.81 x 9.43

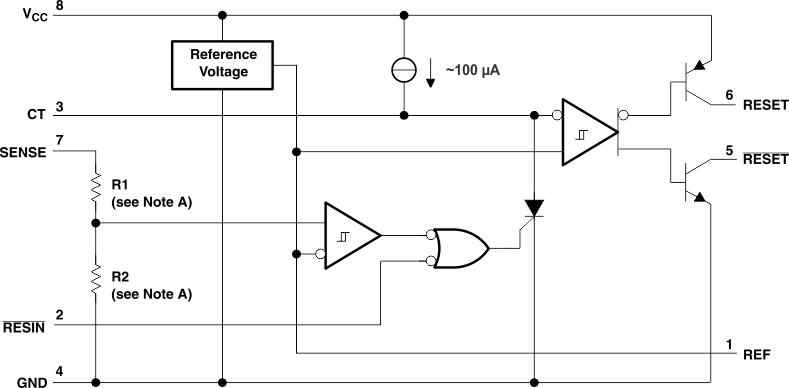

The TL77xxA family of integrated-circuit supply-voltage supervisors is designed specifically for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 3.6 V. At this point (assuming that SENSE is above VIT+), the delay timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, RESET and RESET go active.
