ACTIVE
Number of channels |
8 |
Technology family |
AC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Standard CMOS |
Output type |
3-State |
Clock frequency (max) (MHz) |
100 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Supply current (max) (µA) |
40 |
Features |
Balanced outputs, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-40 to 85 |
Rating |
Catalog |

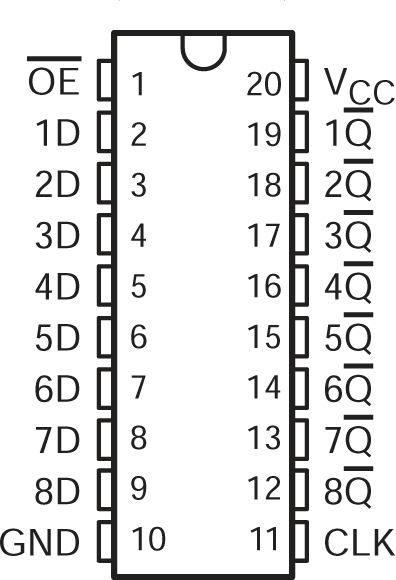

PDIP (N)-20-228.702 mm² 24.33 x 9.4

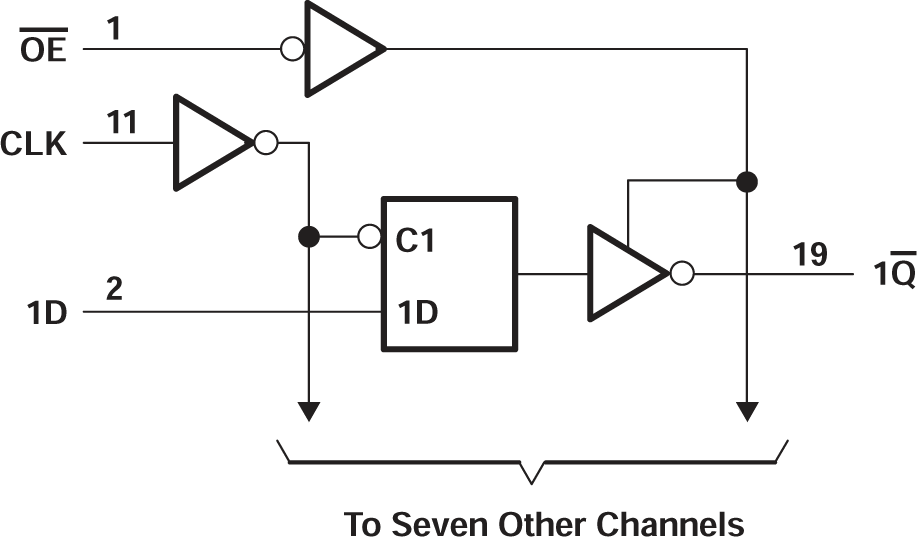

The ’AC564 devices are octal D-type edge-triggered flip-flops that feature inverting 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
