ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
36 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4.5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.1 |
Offset drift (typ) (µV/°C) |
0.5 |
Input bias current (max) (pA) |
20 |
GBW (typ) (MHz) |
10 |
Features |
EMI Hardened, High Cload Drive |
Slew rate (typ) (V/µs) |
20 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
1 |
Vn at 1 kHz (typ) (nV√Hz) |
5.5 |
CMRR (typ) (dB) |
140 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (A) |
0.065 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.1 |
Input common mode headroom (to positive supply) (typ) (V) |
0.1 |
Output swing headroom (to negative supply) (typ) (V) |
0.095 |
Output swing headroom (to positive supply) (typ) (V) |
-0.095 |
THD + N at 1 kHz (typ) (%) |
0.00008 |
SOIC (D)-8-29.4 mm² 4.9 x 6

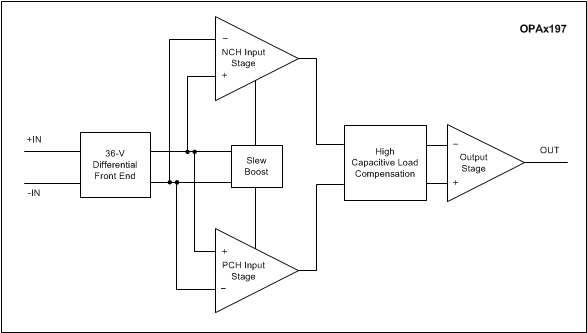

The OPAx197 family (OPA197, OPA2197, and OPA4197) is a new generation of 36-V operational amplifiers.
These devices offer outstanding dc precision and ac performance, including rail-to-rail input/output, low offset (±25 µV, typical), low offset drift (±0.25 µV/°C, typ), and 10-MHz bandwidth.
Unique features such as differential input-voltage range to the supply rail, high output current (±65 mA), high capacitive load drive of up to 1 nF, and high slew rate (20 V/µs) make the OPA197 a robust, high-performance operational amplifier for high-voltage, industrial applications.
The OPA197 family of op amps is available in standard packages and is specified from –40°C to +125°C.
